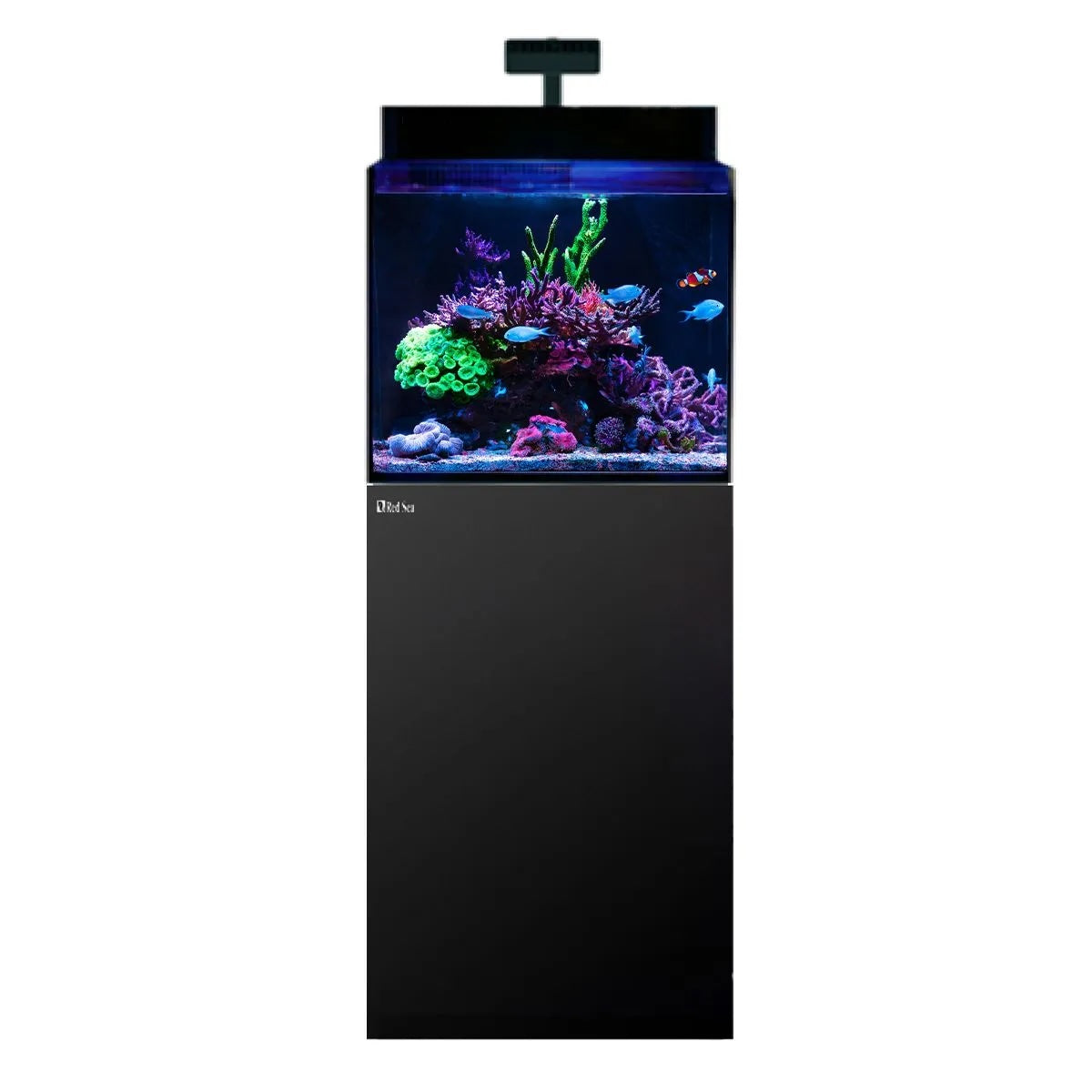

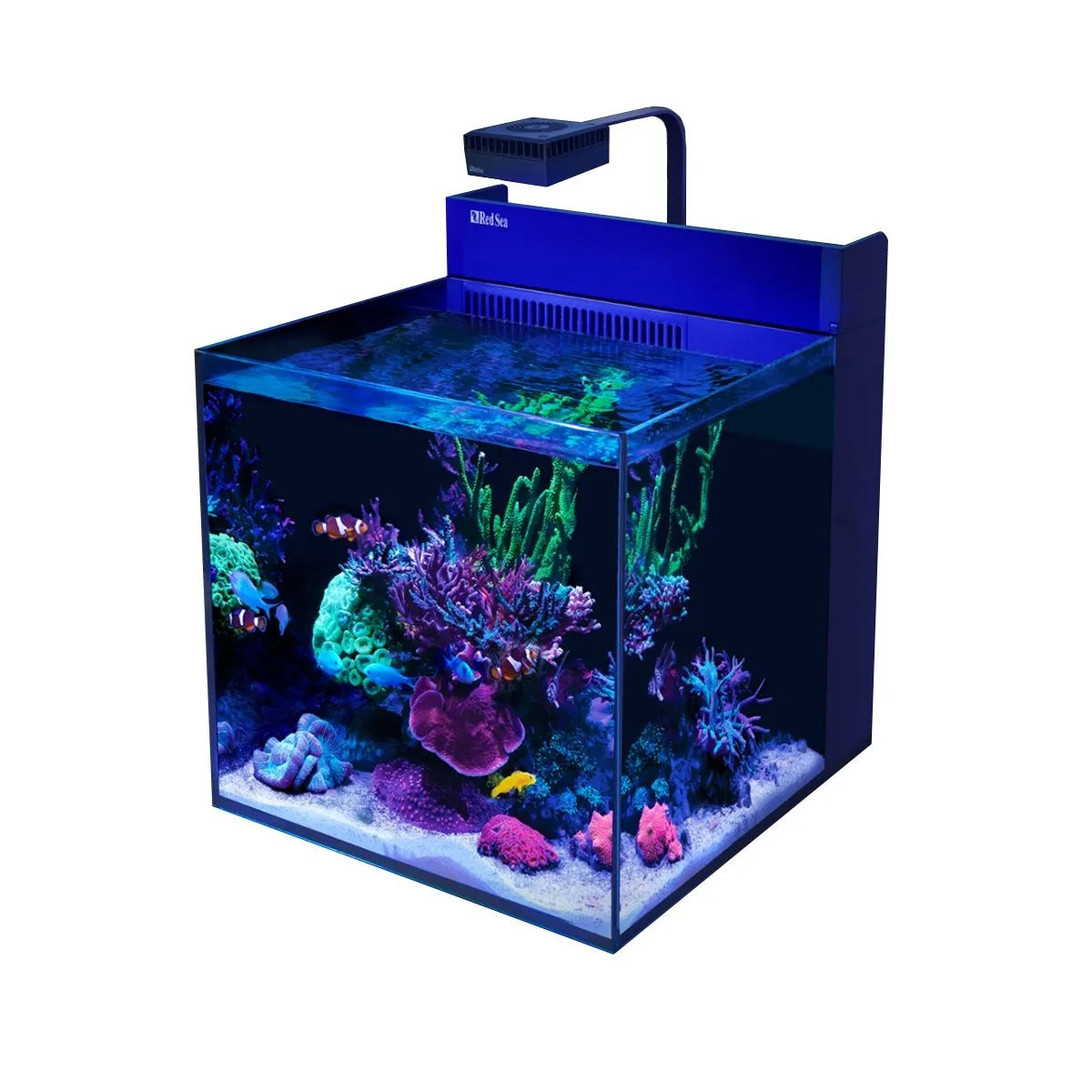

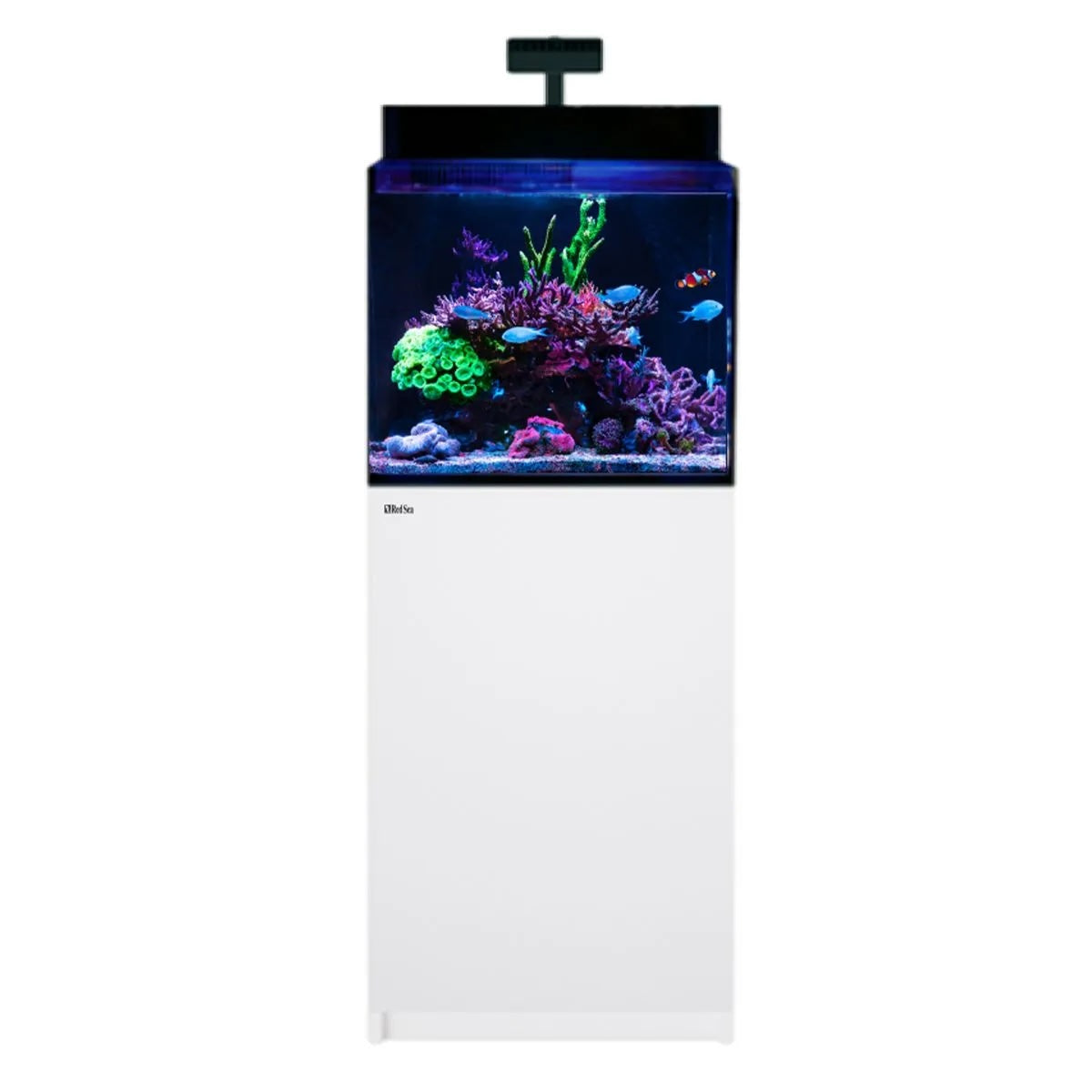

Red Sea MAX NANO G2 XL Aquarium System
The Red Sea MAX NANO G2 XL is a compact, fully equipped reef aquarium designed for reef keepers who want the simplicity of an all-in-one system with more room for aquascaping, coral growth, and livestock.
Larger than the MAX NANO Cube and Peninsula, the XL offers a 33-gallon total system volume with a deeper and wider display while still keeping all filtration equipment discreetly hidden in the rear sump. The system includes Red Sea's REEF-SPEC lighting, protein skimming, circulation, mechanical filtration, and automatic top-off, making it a complete foundation for a modern reef aquarium.
Key Features
- 33-gallon total system volume
- 29.3-gallon display volume
- 10mm ultra-clear rimless glass
- Fully integrated rear sump filtration
- Included MAX NANO protein skimmer
- Included Sicce circulation pump
- Included ReefLED lighting system
- Built-in automatic top-off with RO reservoir
- NanoMat-ready filtration compartment
- ReefATO+ ready
- Removable surface skimmer
- Adjustable multidirectional return nozzles
- Optional matching cabinet available
- Eligible for Red Sea's extended warranty when registered according to manufacturer requirements
Aquarium Features
- Larger and deeper than the MAX NANO Cube and Peninsula, providing additional room for aquascaping, coral placement, and fish.
- Ultra-clear rimless glass provides excellent clarity and a clean, modern appearance.
- 10mm glass construction provides added strength for the larger XL dimensions.
- Compact all-in-one design eliminates the need for a traditional sump beneath the aquarium.
- Rear filtration equipment is concealed behind a rotatable equipment screen, keeping the display clean while allowing convenient access for maintenance.
- The approximately 23.6-inch front-to-back depth provides excellent aquascaping space for a reef aquarium of this overall size.
Integrated Rear Sump Filtration
The MAX NANO G2 XL uses a fully equipped rear sump that keeps filtration and circulation equipment hidden from the main display.
- Removable surface skimmer directs aquarium water into the filtration system.
- Included 225-micron filter sock provides mechanical filtration.
- Removable filter-sock compartment is NanoMat-ready, allowing installation of Red Sea's automatic fleece-roll filtration system.
- Integrated MAX NANO protein skimmer removes dissolved organic waste while helping oxygenate the aquarium.
- Dedicated media chamber accommodates activated carbon and other chemical or biological filtration media.
- Bubble trap helps reduce microbubbles before water returns to the display.
- Multidirectional adjustable return nozzles allow water flow to be directed throughout the aquarium.
REEF-SPEC Circulation
- Includes a Sicce 1550 LPH circulation pump.
- Circulates the system's water volume approximately 10 times per hour.
- Adjustable return nozzles allow flow to be directed toward different areas of the reef.
REEF-SPEC Lighting
The MAX NANO G2 XL includes Red Sea's ReefLED lighting system, designed specifically to provide the spectrum and intensity required for coral growth and coloration.
- REEF-SPEC spectrum designed for reef aquariums
- Smartphone control through Red Sea's ReefBeat ecosystem
- Programmable lighting schedules
- Adjustable intensity
- Sunrise, sunset, and moonlight programming
Automatic Top-Off
The rear sump includes a built-in automatic top-off system with an RO freshwater reservoir to help maintain a consistent water level and stable salinity.
The MAX NANO G2 XL is also ReefATO+ ready, allowing the standard ATO system to be upgraded to Red Sea's smart ReefATO+ system with automatic top-off, temperature monitoring, and leak detection.
ReefATO+ is sold separately.
NanoMat Ready
The mechanical filtration compartment can be removed and replaced with the Red Sea NanoMat automatic fleece filter.
NanoMat automatically advances clean fleece as the existing section becomes clogged, continuously removing suspended waste before it can break down in the aquarium.
NanoMat is sold separately.
Tank Specifications
-
Dimensions: 19.7" L x 23.6" W x 19.7" H
(50 x 60 x 50 CM) - Display Water Volume: 29.3 gallons (111L)
- Total System Volume: 33 gallons (125L)
- Glass Thickness: 10mm
- Total System Height with Cabinet: Approximately 54" (137 CM), excluding lighting unit
Filtration & Equipment Specifications
- Protein Skimmer: MAX NANO protein skimmer included
- Circulation Pump: Sicce 1550 LPH
- Mechanical Filtration: 225-micron filter sock
- NanoMat Ready: Yes
- ReefATO+ Ready: Yes
- Automatic Top-Off: Included
- RO Reservoir: Included
- Rear Sump Filtration: Integrated
What's Included
- Red Sea MAX NANO G2 XL Aquarium
- Integrated Rear Sump Filtration System
- MAX NANO Protein Skimmer
- Sicce 1550 LPH Circulation Pump
- ReefLED Lighting System
- ReefLED Mounting Arm
- Automatic Top-Off System
- RO Freshwater Reservoir
- 225-Micron Filter Sock
- Removable NanoMat-Ready Filter Holder
- Filtration Media Chamber
- Adjustable Return Nozzles
- Rear Sump Equipment Screen
Please Note: The matching MAX NANO G2 XL cabinet may be sold separately depending on the selected configuration. NanoMat and ReefATO+ are optional upgrades and are not included with the standard system.
