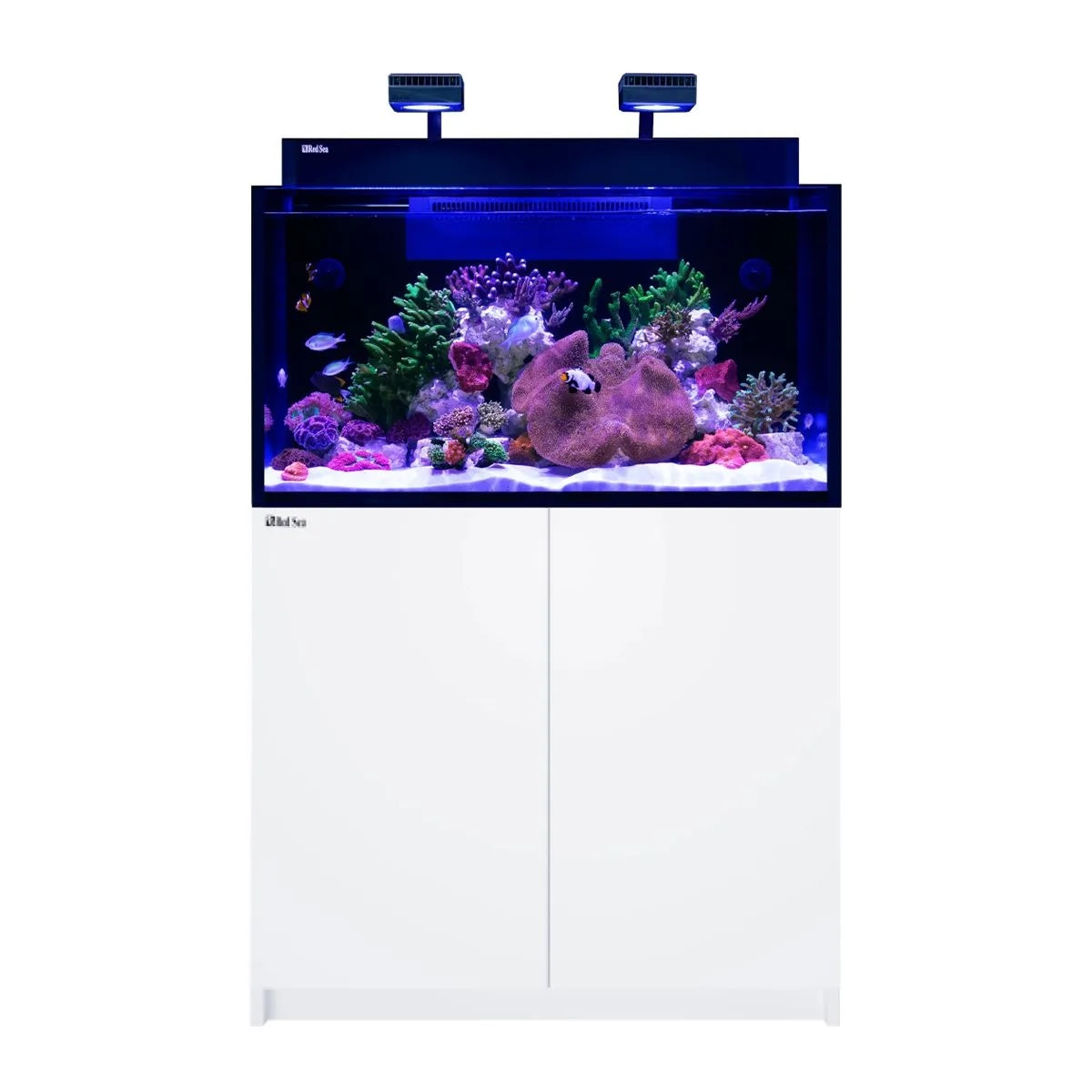

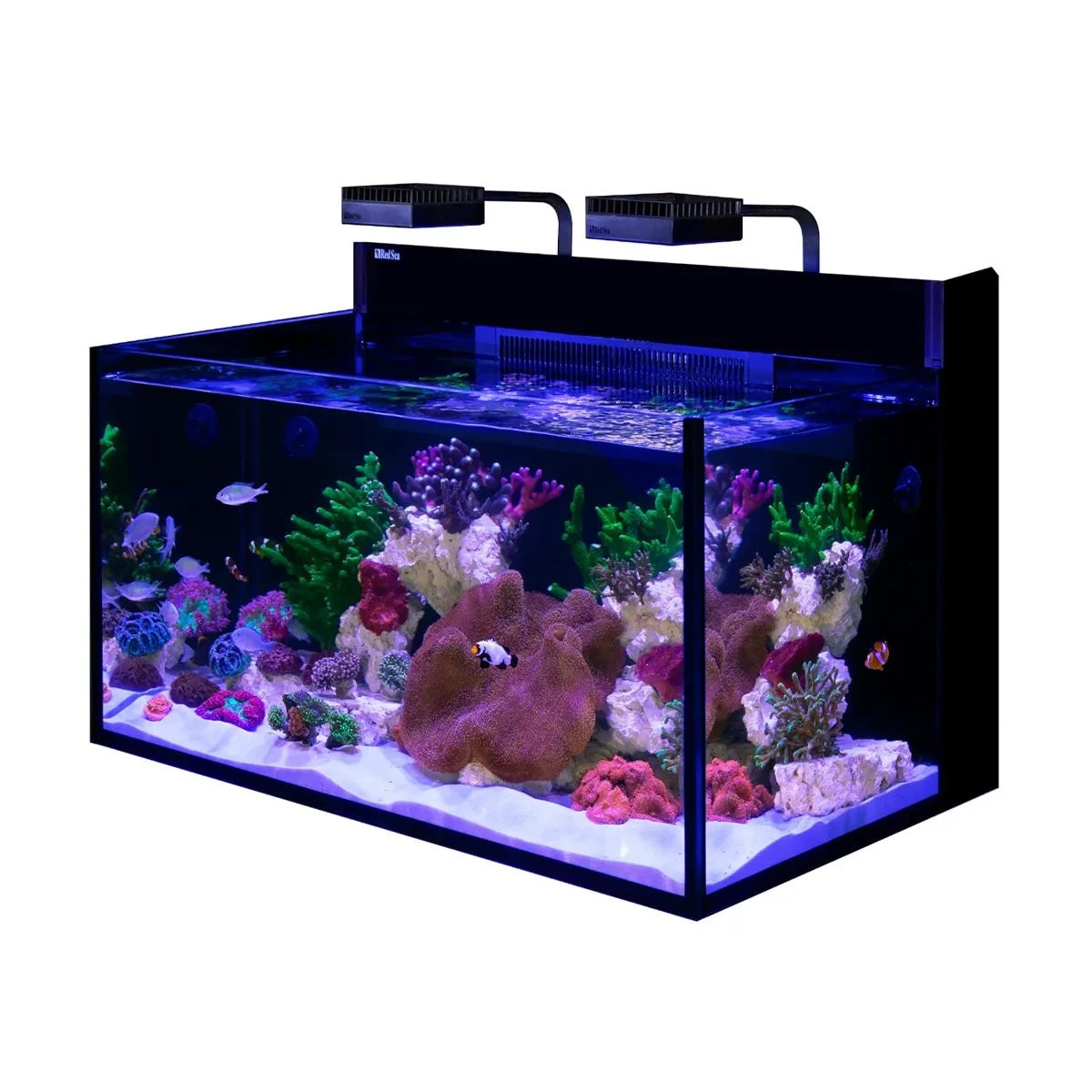

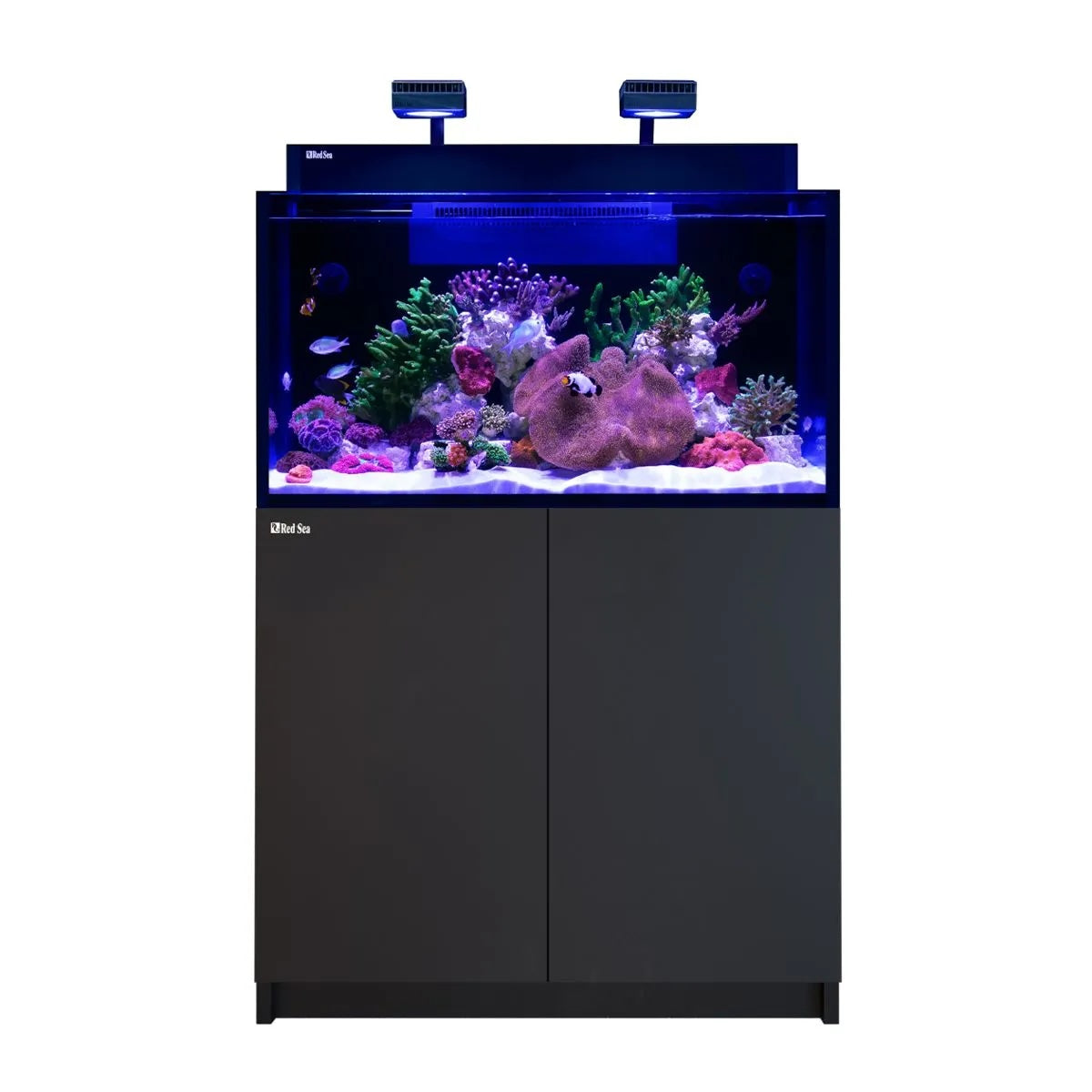

Red Sea MAX NANO G2 XXL Aquarium System
The Red Sea MAX NANO G2 XXL is the largest aquarium in the MAX NANO family, combining the convenience of an all-in-one reef system with substantially more display space than a traditional nano aquarium.
With a 53-gallon total system volume and a 45-gallon display, the MAX NANO G2 XXL provides enough room for a more ambitious reefscape while keeping all major filtration equipment hidden in the integrated rear sump. Its 35.4" x 21.7" footprint offers excellent horizontal swimming room and aquascaping flexibility without requiring a traditional sump beneath the aquarium.
Key Features
- 53-gallon total system volume
- 45-gallon display volume
- 35.4" wide display
- 12mm ultra-clear rimless glass
- Fully integrated rear sump filtration
- Included MAX NANO G2 XXL protein skimmer
- Dual Sicce circulation pumps
- Dual ReefLED 50 lighting system
- NanoMat-ready filtration compartment
- ReefATO+ ready
- Integrated mechanical and chemical filtration
- Removable surface skimmer
- Adjustable multidirectional return nozzles
- Optional matching cabinet available
Aquarium Features
- The largest model in Red Sea's MAX NANO G2 lineup, providing significantly more room for coral growth, aquascaping, and fish than the Cube, Peninsula, or XL models.
- Ultra-clear rimless glass provides excellent viewing clarity and a clean, contemporary appearance.
- 12mm glass construction provides additional strength for the wider XXL display.
- The 35.4" width creates substantially more horizontal swimming room and allows for longer, more open reef structures.
- Integrated rear filtration eliminates the need for a traditional sump beneath the aquarium.
- Filtration equipment is concealed behind a rotatable rear screen that provides easy access while maintaining a clean appearance.
Integrated Rear Sump Filtration
The MAX NANO G2 XXL features a fully equipped rear filtration system designed to keep equipment hidden while remaining accessible for maintenance.
- Removable surface skimmer directs aquarium water into the rear filtration system.
- Included 225-micron filter sock provides mechanical filtration.
- Removable mechanical filtration compartment is NanoMat-ready, allowing installation of Red Sea's automatic fleece-roll filter.
- Integrated MAX NANO G2 XXL protein skimmer removes dissolved organic waste while helping oxygenate the aquarium.
- Dedicated media chamber accommodates activated carbon and other filtration media.
- Bubble traps help reduce microbubbles before water returns to the display.
- Dual multidirectional return nozzles allow water flow to be directed throughout the aquarium.
- Rear sump is both NanoMat-ready and ReefATO+ ready for future filtration and automatic top-off upgrades.
REEF-SPEC Circulation
The MAX NANO G2 XXL uses dual return pumps to provide strong circulation through the integrated filtration system.
- Includes 2 x Sicce 1550 LPH return pumps
- Combined circulation of approximately 3100 LPH
- Pumps circulate the aquarium's total system volume approximately 10 times per hour
- Dual adjustable return nozzles help distribute flow across the wider display
REEF-SPEC Lighting
The MAX NANO G2 XXL includes two Red Sea ReefLED 60 fixtures, providing a combined 120 watts of reef-specific LED lighting across the wider aquarium.
- 2 x ReefLED 60
- 120 watts total lighting power
- REEF-SPEC spectrum designed specifically for coral growth and coloration
- Smartphone control through Red Sea's ReefBeat ecosystem
- Programmable lighting schedules
- Adjustable intensity
- Sunrise, sunset, and moonlight programming
NanoMat Ready
The rear sump is designed for easy installation of Red Sea's NanoMat automatic fleece filter.
NanoMat automatically advances clean fleece as the existing section becomes dirty, continuously removing suspended waste from the aquarium before it can break down.
NanoMat is sold separately.
ReefATO+ Ready
The MAX NANO G2 XXL rear sump includes the mounting provisions required for Red Sea's ReefATO+ system.
ReefATO+ provides:
- Automatic freshwater top-off
- Precision water-level monitoring
- Temperature monitoring
- Leak detection
- ReefBeat smartphone connectivity
ReefATO+ is sold separately.
Tank Specifications
-
Dimensions: 35.4" L x 21.7" W x 19.7" H
(90 x 55 x 50 CM) - Display Water Volume: 45 gallons (169L)
- Total System Volume: 53 gallons (200L)
- Glass Thickness: 12mm
- Total System Height with Cabinet: Approximately 54" (137 CM), excluding lighting units
Filtration & Equipment Specifications
- Protein Skimmer: MAX NANO G2 XXL protein skimmer included
- Circulation Pumps: 2 x Sicce 1550 LPH
- Combined Return Flow: Approximately 3100 LPH
- Mechanical Filtration: 225-micron filter sock
- NanoMat Ready: Yes
- ReefATO+ Ready: Yes
- Rear Sump Filtration: Integrated
- Lighting: 2 x ReefLED 60
What's Included
- Red Sea MAX NANO G2 XXL Aquarium
- Integrated Rear Sump Filtration System
- MAX NANO G2 XXL Protein Skimmer
- 2 x Sicce 1550 LPH Circulation Pumps
- 2 x ReefLED 60 Lighting Fixtures
- ReefLED Mounting Arms
- 225-Micron Filter Sock
- Filter Sponge
- Activated Carbon Media and Bag
- NanoMat-Ready Filtration Compartment
- ReefATO+ Sensor Mount
- Dual Bubble Traps
- Dual Adjustable Return Nozzles
- Rear Sump Equipment Screen
- Pump and Skimmer Switch Box
Please Note: The matching MAX NANO G2 XXL cabinet may be sold separately depending on the selected configuration. NanoMat and ReefATO+ are optional upgrades and are not included with the standard system.
