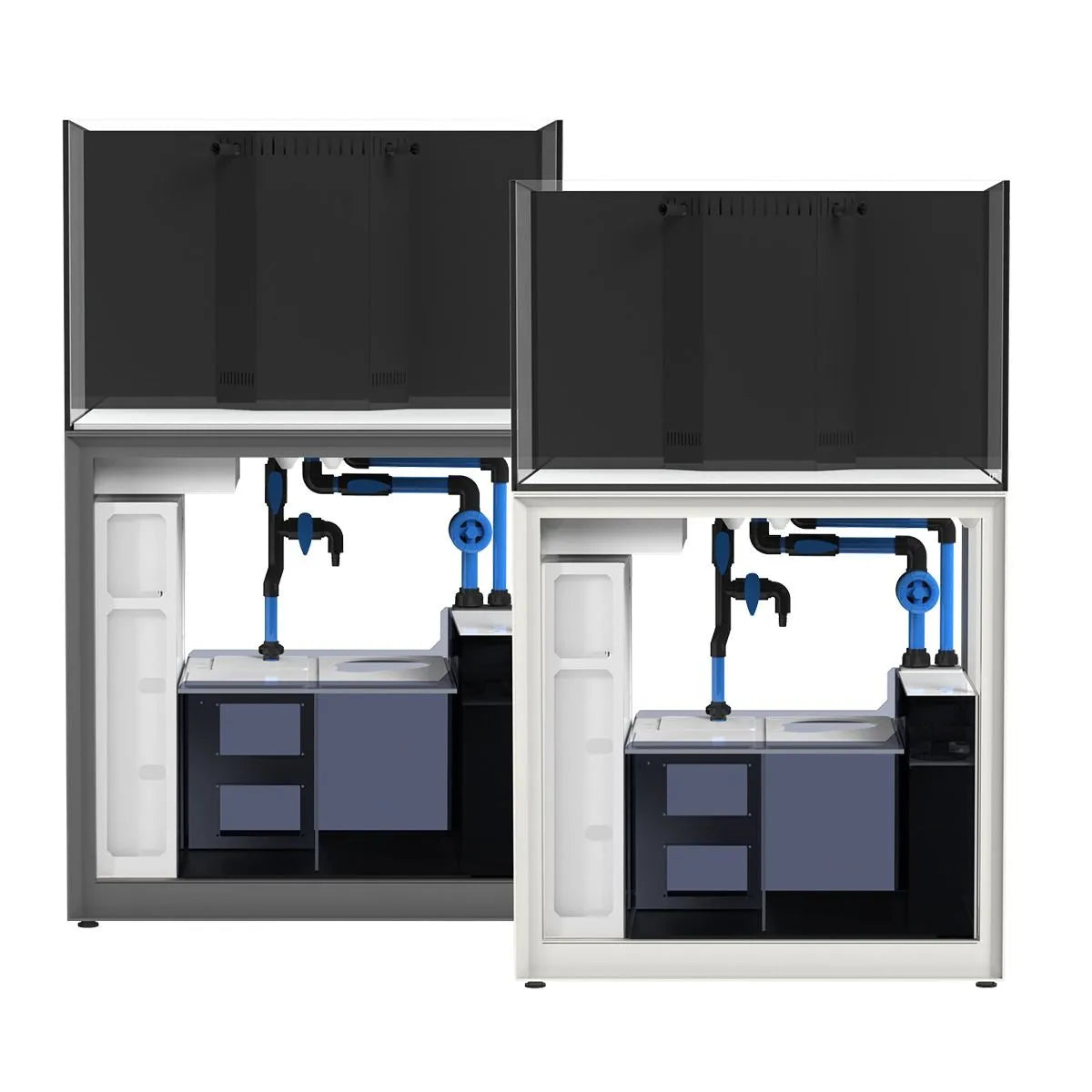

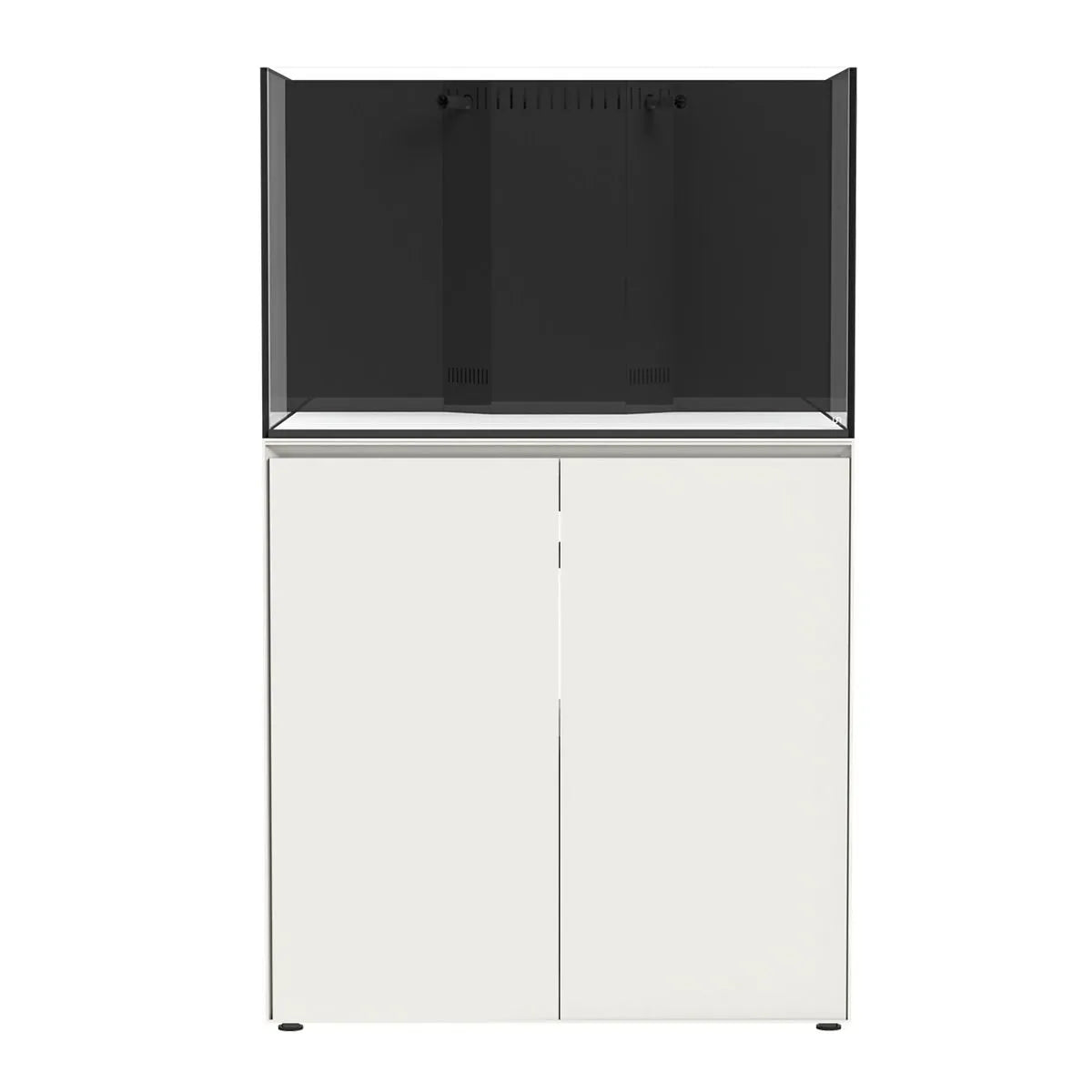

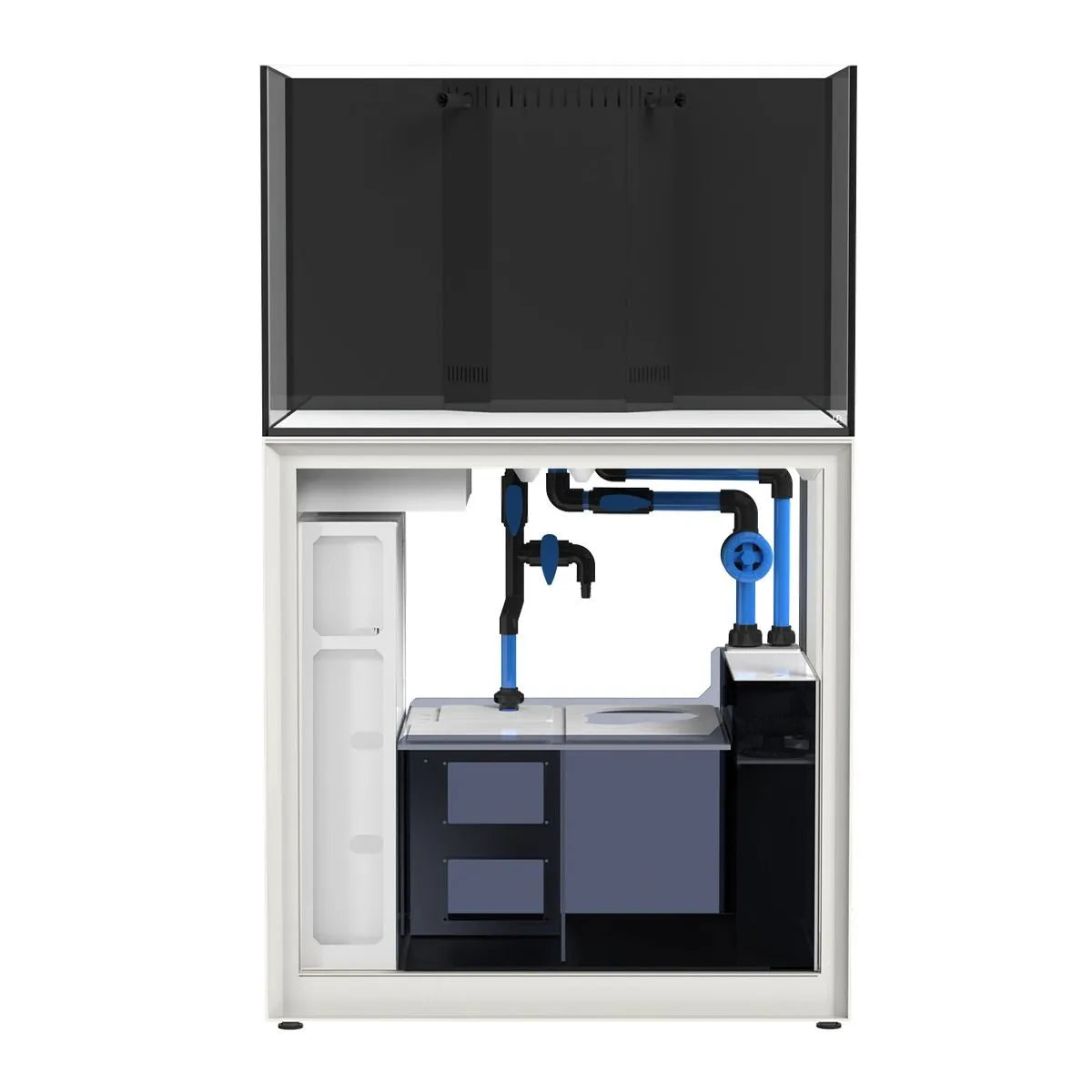

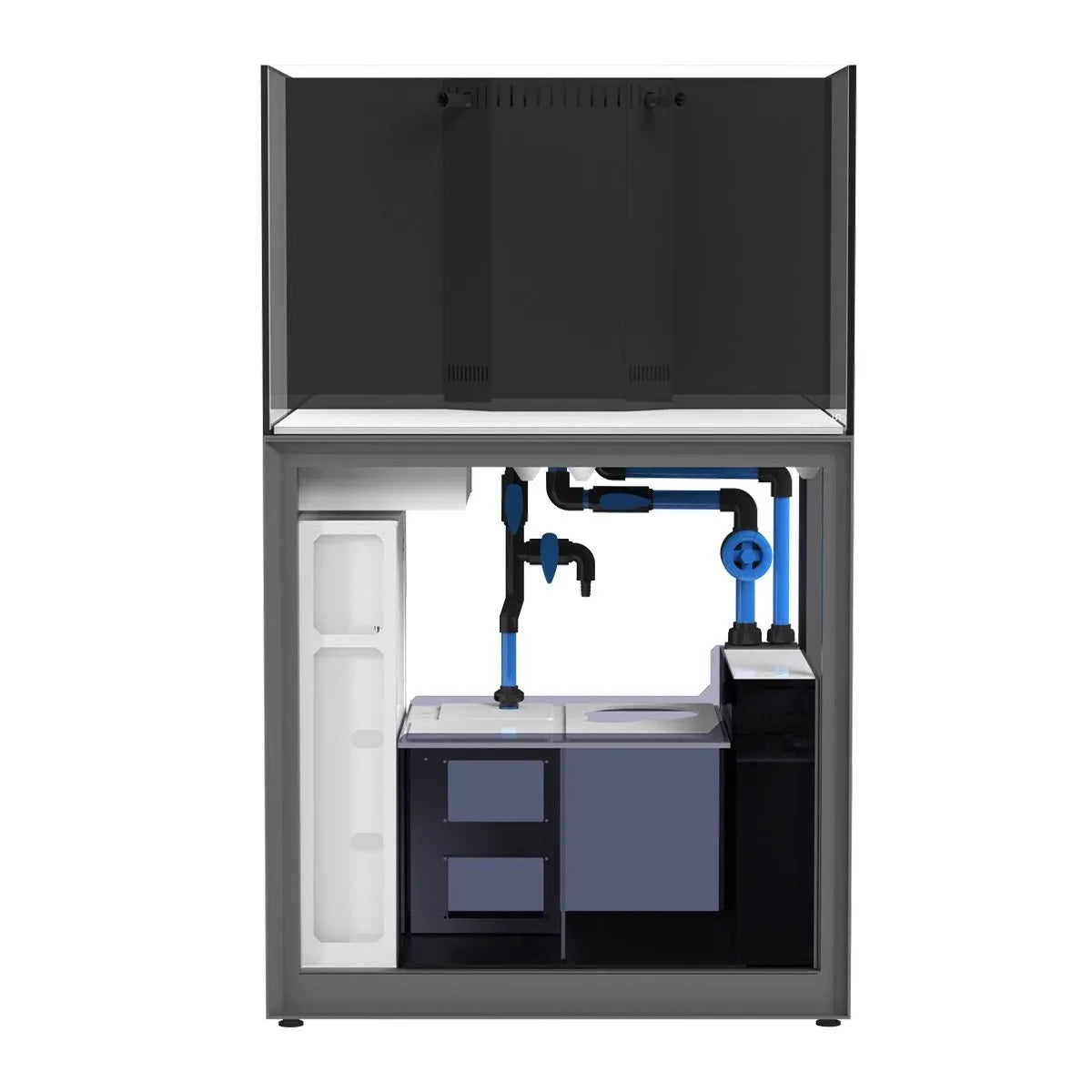

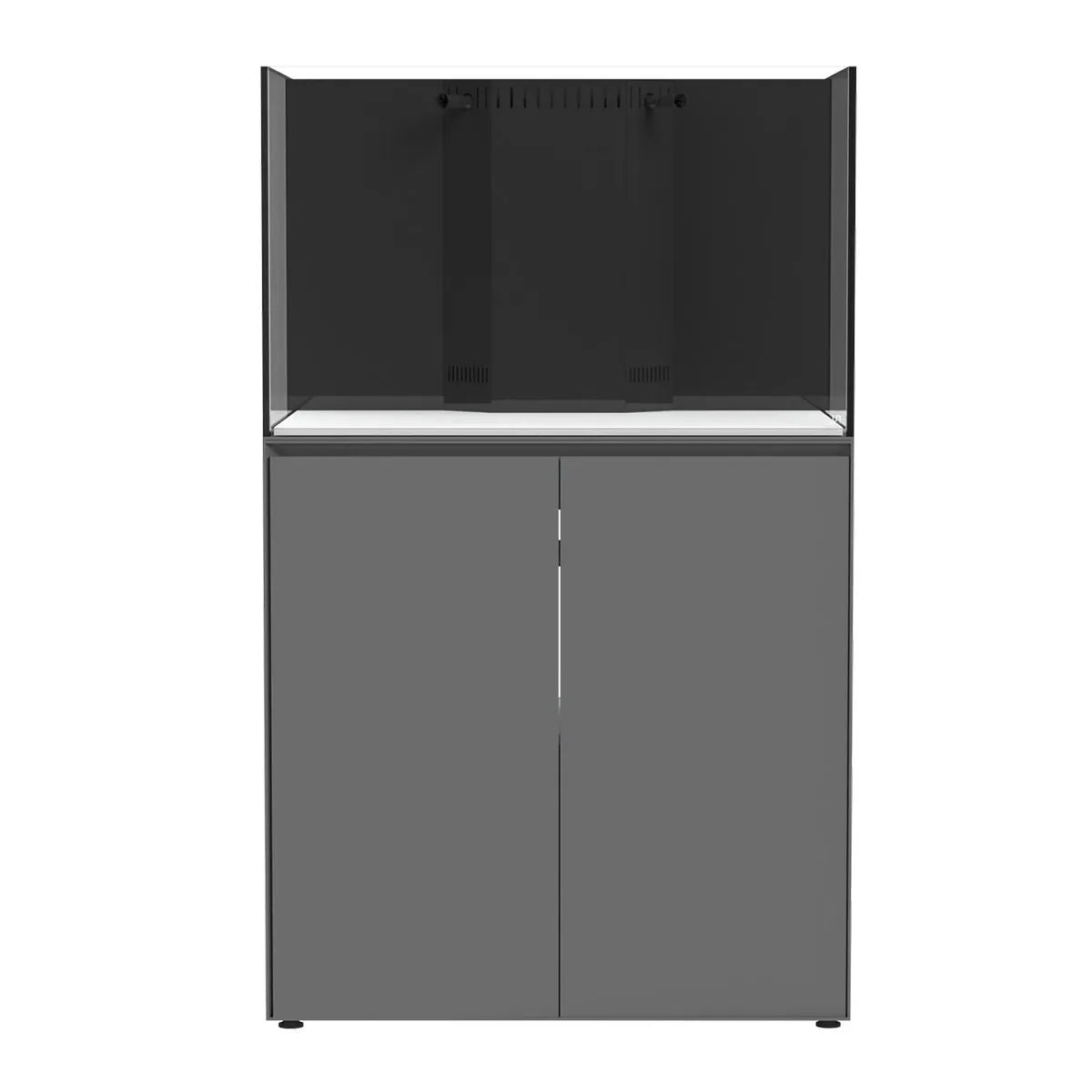

UNS R90 Rimless Aquarium, Stand and Sump Set
The UNS Reef System offers a reef-ready setup designed to balance clean aesthetics, durability, and practical functionality. The R Series features signature UNS 45° mitered edges, black silicone, and thick, ultra-clear low-iron glass for exceptional viewing clarity and long-term performance.
Each system includes a matching aluminum-framed stand and pre-installed sump filtration system. Fully removable magnetic cabinet doors provide easy access to equipment while eliminating traditional metal hinges that may be prone to corrosion. Integrated storage, cable management, and a dedicated controller compartment help keep the entire system organized and streamlined.
Every detail of the UNS R90 has been designed to create a refined, modern reef aquarium system that is easy to install, maintain, and customize.
Key Features
- 1-year warranty
Rimless Aquarium Features
- Signature 45° mitered edges with low-iron, high-clarity glass provide exceptional viewing clarity and allow easier edge-to-edge cleaning with your preferred algae scraper or glass cleaner.
- Black silicone helps discreetly hide the appearance of coralline algae along the seams.
- Thick glass construction eliminates the need for euro bracing while maintaining the clean appearance of a true rimless aquarium.
- Sleek white aquarium bottom allows for an attractive bare-bottom setup while helping conceal equipment located beneath the aquarium.
Aquarium Cabinet & Sump Features
- Low-profile overflow box features intake slots at both the top and bottom for efficient water movement. An internal vertical glass panel provides additional protection against flooding in the event of a pump failure.
- Durable polycarbonate overflow cover offers increased resistance to heat and warping. Additional covers are designed for easy removal and sit flush to help reduce salt creep.
- Fully removable magnetic cabinet doors provide unrestricted access to equipment. The aluminum frame and magnetic attachment system eliminate the need for traditional stainless-steel hinges, improving long-term corrosion resistance.
- Arrives fully assembled with the sump pre-installed for a faster, easier setup. Simply position the aquarium on the stand, connect the pre-glued plumbing, and secure the connections using the included twist-on unions.
- Pre-cut openings provide clean and convenient wire management.
- Includes a pull-out storage drawer for organizing aquarium accessories, maintenance tools, test kits, and other essentials.
- Built-in controller compartment provides a dedicated location for power supplies, surge protectors, and cable management.
- The lower controller compartment may also be used for a chiller and includes a viewing window for convenient monitoring.
- Removable controller boards can be easily accessed through the side cabinet door while keeping wires organized and concealed.

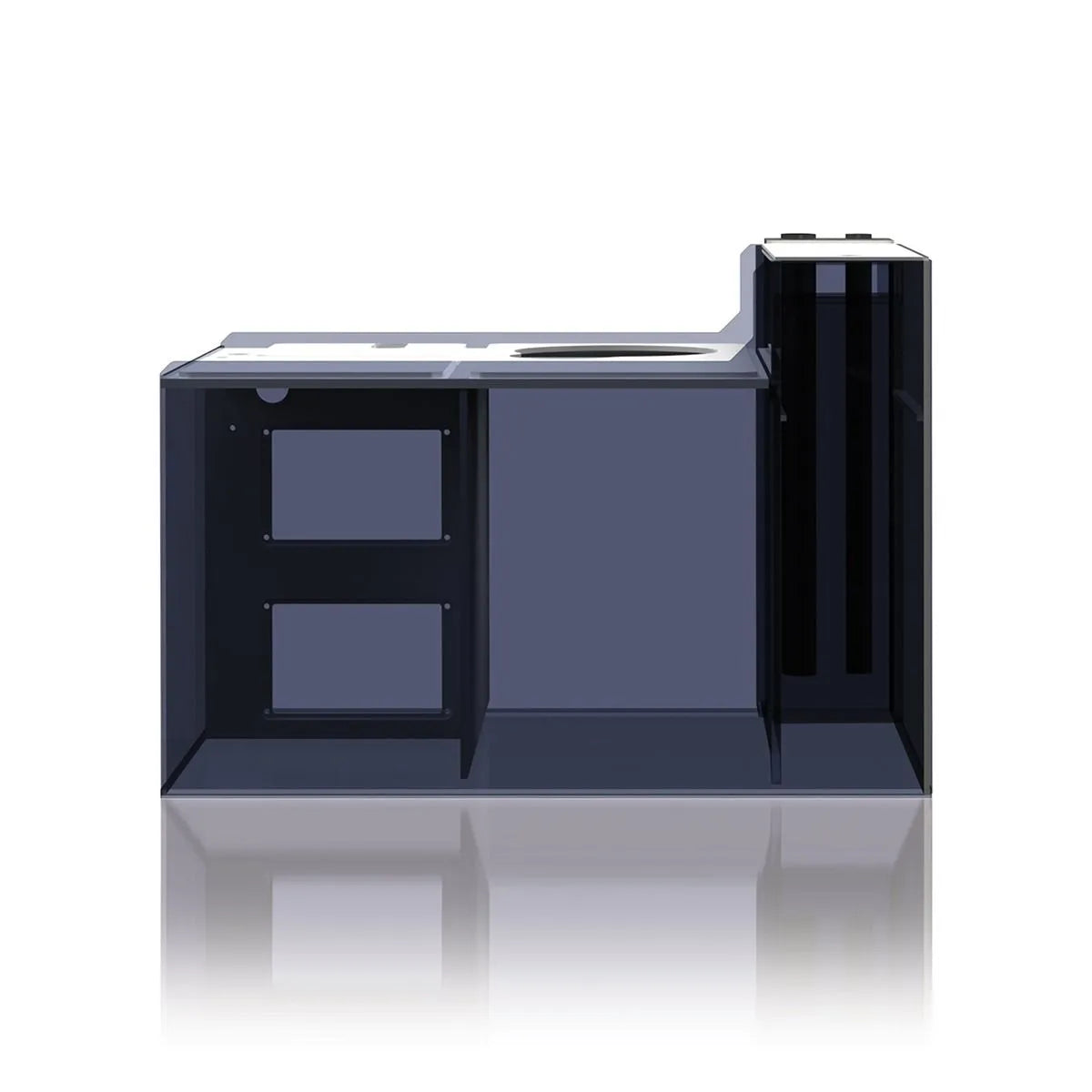

Sump Filtration System Features
- Included gate valves allow precise water-flow adjustment while helping reduce overflow noise. The return plumbing also includes a ball valve and barbed fittings for connecting optional equipment such as reactors or chillers.
- A gasket positioned below the drainpipe and sump helps reduce salt-creep accumulation.
- Multi-chamber sump includes a prefilter baffle that captures larger debris using filter floss, helping extend the time between filter-sock maintenance.
- Diffuser plates help reduce water noise and prevent filter socks from floating as they become full.
- Dedicated protein-skimmer chamber accommodates a variety of popular skimmers. An adjustable acrylic baffle allows the operating water level to be customized for different skimmer requirements.
- Additional sump chamber can be used for filtration media, biological media, or as a refugium, with an adjustable water level.
- Includes an acrylic automatic top-off reservoir with a pre-installed float valve.
Tank Specifications
- Dimensions: 35.43 x 23.62 x 23.62" (90 x 60 x 60 CM)
- Glass Thickness: 12mm
- Volume: 71.2 gallons (270L)
- Total Volume Including Sump: Refer to manufacturer specifications
Stand Specifications
- Dimensions: 35.43 x 23.62 x 36.2" (90 x 60 x 92.1 CM)
- Storage Drawers: 1
- Integrated Controller Compartment: Yes
What’s Included
- UNS R90 Rimless Aquarium
- Aluminum Stand — available in White or Grey
- Pre-installed Sump Filtration System
- Plumbing and Union Fittings
- Outlet Nozzles
- Velcro Strips for Cable Management
