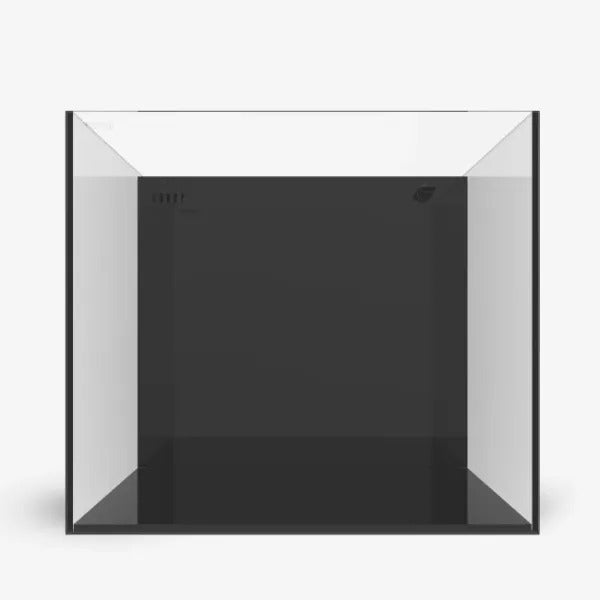

Waterbox AIO 20 Cube (All-In-One) Aquarium System
The Waterbox AIO Series is a sleek, all-in-one aquarium system designed for beginner or pro saltwater enthusiasts who want a simple, modern, and efficient setup. Crafted with ultra-clear, low-iron glass and a minimalist rimless design, the AIO series delivers exceptional viewing clarity while blending seamlessly into any home or office environment.
Engineered for convenience, the Waterbox AIO features a built-in, rear filtration chamber that houses mechanical, biological, and chemical filtration—eliminating the need for external plumbing or a sump. The compartment includes adjustable baffles, media baskets, and return pump sections, making it easy to customize for a variety of livestock and aquascapes.
Key Features:
-
Ultra-clear, low-iron glass for maximum clarity and color accuracy
-
Rimless design with polished edges for a modern, open-top look
-
Integrated rear filtration system with chambers for media, heater, and return pump
-
Compact footprint ideal for desktops, countertops, or smaller living spaces
-
Included leveling mat and pre-installed filter sock for added convenience
-

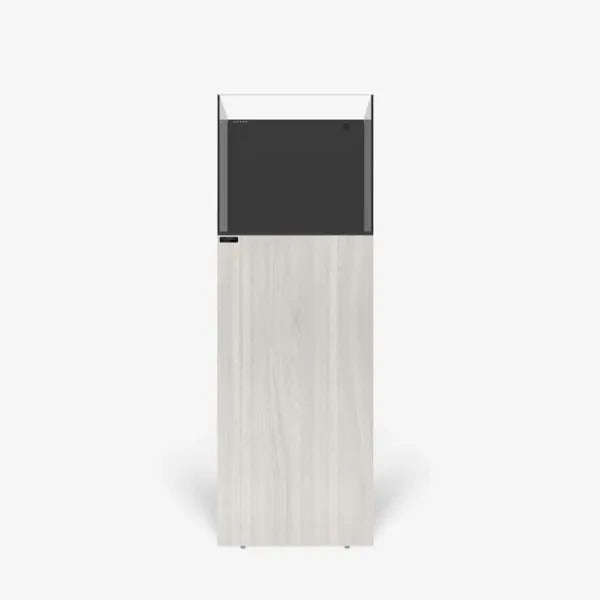

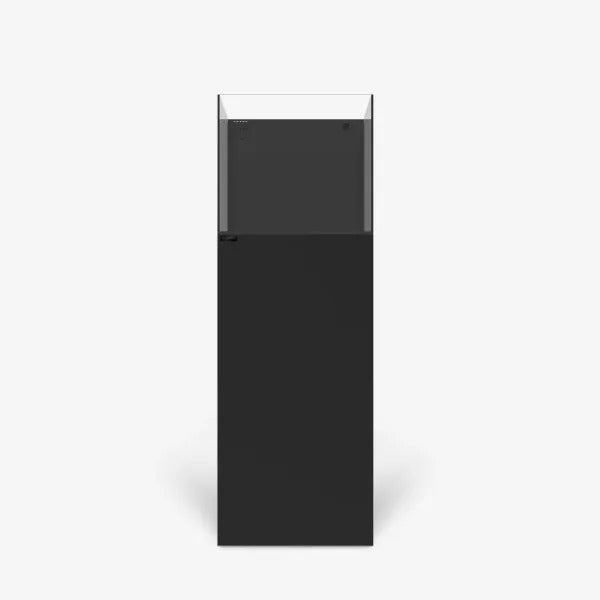

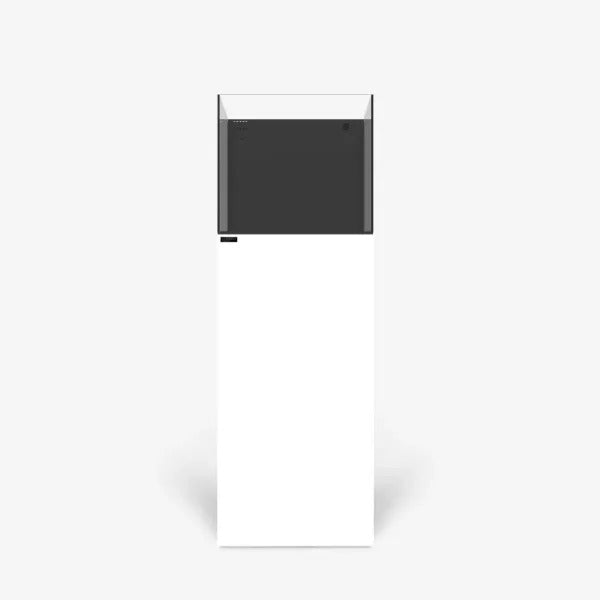

Optional matching cabinet stand available in white, black, and aspen
Whether you're setting up your first nano reef or a compact freshwater aquascape, the Waterbox AIO series offers a streamlined, high-quality solution that balances performance and style.
Waterbox AIO – Simplified Excellence in Aquarium Design.
PEACE OF MIND
3 Year Waterbox Warranty warrants your product against defects in materials and workmanship for a period of 3 years, valid from the original date of purchase.
Specifications
- Dimensions (LxWxH): 450 x 450 x 400mm (17.7" × 17.7" × 15.7")
- Height with Cabinet: 1210 mm/47.6"
- Display Volume: 76 L/20gals
- Glass Thickness: 6mm
- Includes: Aquarium, Filter Sock, Carbon Pellets, Ceramic Rings, Pump
Technical Specifications
| Product Model | AIO 20 Cube | AIO 25 Peninsula | AIO 35.2 | AIO 50.3 | AIO 65.4 | |
|---|---|---|---|---|---|---|
| Aquarium | Dimensions (LxWxW) | 450 x 450 x 400mm | 600 x 400 x 400mm | 600 x 500 x 450mm | 900 x 500 x 450mm | 1,200 x 500 x 450mm |
| 17.7" × 17.7" × 15.7" | 23.6" × 15.7" × 15.7" | 23.6"×19.7"×17.7" | 35.4"×19.7"×17.7" | 47.2"×19.7"×17.7" | ||
| Tank Volume | 76 L | 90 L | 125 L | 186 L | 249 L | |
| 20.0 gals | 23.7 gals | 33 gals | 49.1 gals | 65.8 gals | ||
| Glass Thickness | 6mm (1/4") | 6mm (1/4") | 8mm (5/16") | 10mm (2/5") | 10mm (2/5") | |
| Aquarium Weight | 17.5 kg/39 lbs | 21 kg/46 lbs | 33 kg/73 lbs | 52 kg/115 lbs | 56 kg/123 lbs | |
| Front & Sides | Ultra-clear Low Iron glass (front and sides) | |||||
| Transmittance | 91% | |||||
| Filtration Compartment (Int. Dimensions) |
438 x 80 x 387mm | 388 x 80 x 387mm | 584 x 120 x 435mm | 880 x 120 x 433mm | 1180 x 120 x 433mm | |
| 17.2" × 3.1" ×15.2" | 15.3" × 3.1" × 15.2" | 23" × 4.7" × 17.1" | 34.6" × 4.7" × 17" | 46.5" × 4.7" × 17" | ||
| Filter Sock Chamber (Int. Dimensions) |
80 x 80 x 387mm | 80 x 80 x 387mm | 81 x 120 x 435mm | 81 x 120 x 433mm | 161 x 120 x 433mm | |
| 3.1" × 3.1" × 15.2" | 3.1" × 3.1" × 15.2" | 3.2" × 4.7" × 17.1" | 3.2" × 4.7" × 17" | 6.3" × 4.7" × 17" | ||
| Media/Skimmer Chamber (Int. Dimensions) |
200 x 80 x 387mm | 173 x 80 x 387mm | 101 x 120 x 435mm | 154 x 120 x 433mm | 150 x 120 x 433mm | |
| 7.9" × 3.1" ×15.2" | 6.8" ×3.1" × 15.2" | 4"×4.7"×17.1" | 6.1"×4.7"×17" | 5.9"×4.7"×17" | ||
| Pump Chamber (Int. Dimensions) |
80 x 118 x 387mm | 80 x 95 x 387mm | 140 x 120 x 435mm | 300 x 120 x 433mm | 221.5 x 120 x 433mm | |
| 3.1" × 4.6" × 15.2" | 3.1" × 3.7" × 15.2" | 5.5"×4.7"×17.1" | 11.8"×4.7"×17" | 8.7"×4.7"×17" | ||
| Directional Nozzle (Thread Size) |
1 x M14 (14mm), Flare | 1 x M20 (20mm), Y-shape | 2 x M20 (20mm), Y-shape | |||
| Return Hose | lD: 12mm OD: 16mm | lD: 12mm OD: 16mm | lD: 18mm OD: 24mm | |||
| Pump | AP-1500 | n.a. | ||||
| Pump Flow | 1000 LPH/265 GPH | n.a. | ||||
| EVA Mat | x 1 | x 1 | ||||
| Filtration | 225 Micron Filter Socks | 1 x 70mm/2.75" FELT | 2 x 70mm/2.75" FELT | 2 x 70mm/2.75" FELT | 4 x 70mm/2.75" FELT | |
| Filtration Sponge | x 2 | x 4 | x 4 | x 4 | ||
| Activated Carbon | 150g | 2 x 150g | 2 x 150g | 3 x 150g | ||
| Ceramic Ring | 300g | 2 x 300g | 2 x 300g | 3 x 300g | ||
| Cabinet (optional) |
Cabinet Model | PB 1818 | PB 2416 | ALU 2420 | ALU 3620 | ALU 4820 |
| Dimensions | 450 x 450 x 810mm | 600 x 400 x 810mm | 600 x 500 x 900mm | 900 x 500 x 900mm | 1,200 x 500 x 900mm | |
| 17.7"×17.7"×31.9" | 23.6"×15.7"×31.9" | 23.6"×19.7"×35.4" | 35.4" × 19.7" × 35.4" | 47,2" × 19.7" × 35.4" | ||
| Material | 18mm PVC Laminated Wood Oriented Strand Board | Anti-corrosion Aluminum Alloy Framed | ||||
| Door(s) & Side Panels | 18mm PVC Laminated Wood Oriented Strand Board | |||||
| Bottom Panels | 10mm PVC Board | |||||
| Back Panels | 6mm PVC Board | |||||
| Cabinet Weight | 21 kg/46 lbs | 25 kg/55 lbs | 28 kg/62 lbs | 34 kg/75 lbs | 41 kg/90 lbs | |
| Color | White/Black/Aspen | WHT-White, BLK-Black, ASP-Aspen | ||||
