Four-Head Liquid Doser and Controller in One
The HYDROS Blenny features four micro-liquid dosing pumps that work independently to accurately dose liquid supplements, including two-part and trace elements for maintaining a healthy aquarium.
This controller is ideal for both saltwater and freshwater aquariums, and it can be used independently or seamlessly integrated with other HYDROS devices. The Blenny is capable of sending alerts and notifications, and when paired with the HYDROS XP8, it can also control outlets for lights, pumps, feeders, and other aquarium accessories. All HYDROS products are meticulously engineered, assembled, and supported in the USA.

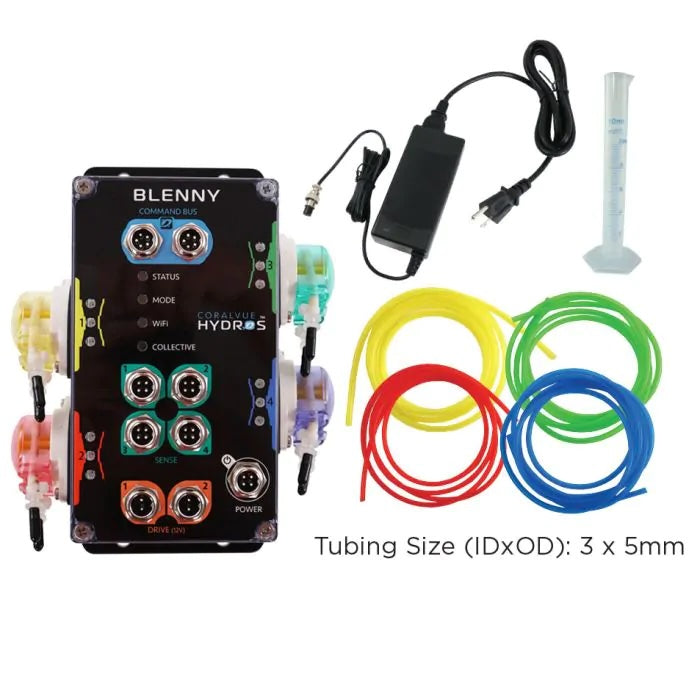

Blenny Includes:
- Blenny Controller
- Power Supply
- Four (4) 10ft Dosing Tubing
- Calibration Beaker
Blenny Specifics
- Dimensions (LxWxH): 7.625 x 6 x 2.875in
- Tubing Size (IDxOD): 3 x 5mm
- 1.5A Each Drive Port, 3A Total Max Amperage
What you can expect from your HYDROS Smart Device
*HYDROS WiFi Power Strip, Control XP8, or Smart Plug required, but not included with Blenny
- Control your HYDROS device(s) from anywhere in the world using the technologically advanced HYDROS cloud-based app
- Ability to monitor and control your HYDROS device(s) locally through WiFi
- A fast dual-core 32-bit processor that allows control decisions to be made within each device
- User sets the alerts and notifications
- Internal health monitoring to report voltages, currents, CPU status, and the internal temperature of each device
- HYDROS Command Bus connections to transfer data and power to devices
Quick & Easy Setup
There is no complicated programming language to learn. If you can operate a smartphone, you can be the operator of a smart aquarium—tap, drag, press, or flick to adjust settings using intuitive icons and simple menus. Schedule each component in your aquarium life support system to run at a specific time, frequency, or intensity. You can also use real-time data and easily configure more complex actions.
IP65 Rated – Splash Proof, Dust Proof, and Secure Connection
HYDROS devices look like industrial controllers because they are built to function in the harsh environment of a marine aquarium. The IP65-rated HYDROS enclosure and aircraft-style connectors ensure long-term reliability in the face of splashes and corrosive salt spray.
Command Bus - 2 Available
The Command bus communicates with other HYDROS devices for the ultimate failsafe and can also power other Control devices.
Drive Port - 2 Available
The Drive Ports provide switched 12V DC power for running small HYDROS aquarium devices. The Control continuously monitors the exact current supplied by each port, so you will be immediately notified if a motor or pump quits drawing current or draws too much.
Each drive port can handle up to 1.5A, and the entire device can handle up to 3A in total.
Drive Ports Currently Support:
- Auto Top-Off (ATO) pumps
- Dosing pumps
- Cooling fans
- Cabinet LED lights
- Solenoids - 1/4in water and CO2 control
- Steering valves and relays
- Stirrers
- HYDROS IV
Sense Port - 4 Available
The Sense Port is a new concept in aquarium parameter measurement. HYDROS devices include several Sense Ports. A Sense Port is a generic input port that can accept data from numerous different types of sensors.
Sense Ports Currently Support:
- Temperature sensor - Either air or water
- Fluid level - Optical sensors to measure liquid levels
- Leak detection - Monitoring for both point and wide area leak detection
- Flow rate - Measures the amount of fluid flowing through a pipe
- Total dissolved solids - Dual measurement of the TDS levels from your RODI system
Precision Micro Dosers - 4 Available
The HYDROS Blenny features four independent micro-liquid dosing pumps for precise dosing of your preferred liquid supplements, including two-part and trace elements for reef aquariums. The Blenny's pumps have the following set speeds: -55, -45, -25, 25, 45, 55 (ml/min).
Micro-Dosers Features:
- Quiet Operation
- Rotatable Dosing Heads
- Exact Metering of Liquids
- Color-Coded Dosing Heads and Tubing
- Easy to Service
Control up to 8 WiFi Devices
The HYDROS App allows you to create rules and set schedules to control our 4-Outlet WiFi AC Power Strips and Smart Outlets. Quickly turn on or off different pieces of aquarium equipment like pumps, powerheads, lights, heaters, algae scrubbers, UV sterilizers, protein skimmers, and more.
WARRANTY
CoralVue, Inc. and HYDROS hereby guarantee this product to be free from defects in material and workmanship for a period of:
- One (1) year warranty on device body/housing
- One (1) year warranty on dosing pump motor (not dosing head(s))
- Tubing, head rollers, and head bushings are considered wearable parts because they experience regular friction, pressure, and use over time, leading to natural degradation. Since these components are expected to wear out as part of normal operation, they are not covered under the limited warranty.
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
