Multi-Light Radion Mounting System - Track
The Multi-Light RMS is modular and customizable mounting system for Radion XR15 and XR30 systems.

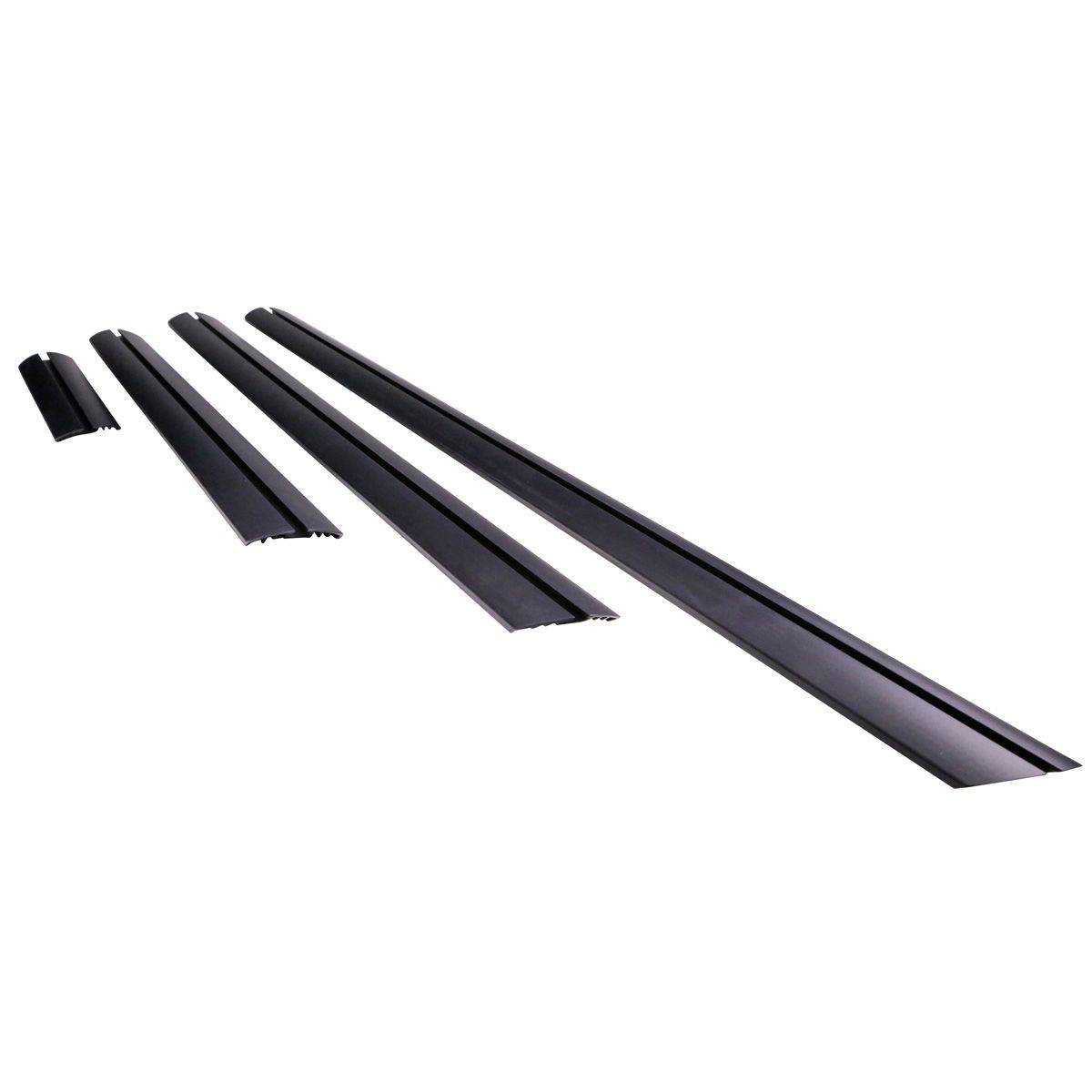

The Multi-Light Radion Mounting System - Track is the horizontal piece that spans between the RMS Multi-Light Arms
The Multi-Light RMS features:
- Built-in cable management
- Rimmed, rlmless, and eurobraced tank capability
- Rigid and light-weight
- Tough anodized aluminum finish
- A single Multi-Light RMS can support XR15 and XR30 lights on the same track
- Flexible slide mounts allow for precise placement of your Radions
- Mounts Radions approximately 7 inches (18cm) above the tank
The Multi-Light Radion Mounting System requires the purchase of the three main components:
- RMS Track - Horizontal piece that spans between the RMS Multi-Light Arms
- RMS Arm - Vertical pieces that mount to your tank and support the RMS Multi-Light system
- RMS Slides - Adjustable mounting brackets that attach to the RMS Track and support the Radion LED lights
| Multi-Light RMS Track Lengths | |||
| Track Length | Model Number | BRS SKU Number | Fits Tanks |
| 20.5" | XR703-0205 | 208938 | 18.5 - 28.5 in (47 - 72.4 cm) wide |
| 30.5" | XR703-0305 | 208939 | 28.5 - 38.5 in (72.4 - 97.8 cm) wide |
| 40.5" | XR703-0405 | 208940 | 38.5 - 48.5 in (97.8 - 123.2 cm) wide |
| 50.5" | XR703-0505 | 208941 | 48.5 - 58.5 in (123.2 - 148.6 cm) wide |
| 60.5" | XR703-0605 | 208942 | 58.5 - 68.5 in (148.6 - 174 cm) wide |
| 70.5" | XR703-0705 | 208943 | 68.5 - 78.5 in (174 - 199.4 cm) wide |
| 80.5" | XR703-0805 | 208944 | 78.5 - 88.5 in (199.4 - 224.8 cm) wide |
| 90.5' | XR703-0905 | 208945 | 88.5 - 98.5 in (224.8 - 250.2 cm) wide |
