Red Sea REEF-FRAME MAX 500 Aquarium System – 107 Gallons

A Premium, Fully Equipped Large-Format Reef Aquarium with Advanced Smart Control

The Red Sea REEF-FRAME MAX 500 combines exceptional aquarium craftsmanship, powerful reefkeeping equipment, and advanced smart technology into one complete saltwater aquarium system.

Featuring a spacious 107-gallon ultra-clear glass display, a 29.3-gallon sump, and Red Sea's ReefControl Pro technology, the REEF-FRAME MAX 500 is designed for reefkeepers who want an impressive large-format aquarium with coordinated equipment and simplified management.

The MAX configuration includes ReefLED G2 lighting, ReefWave circulation pumps, ReefRun return pump, ReefMat automatic filtration, DC protein skimmer, and integrated monitoring and automatic top-off—all designed to work together through Red Sea's ReefBeat ecosystem.

The extra-fortified marine-spec plywood cabinet is available in Black, White, or the new Classic Oak finish, combining powerful reefkeeping performance with elegant contemporary styling.

Whether you're creating an elaborate mixed reef, SPS-dominant aquarium, or impressive fish and coral display, the REEF-FRAME MAX 500 provides the space, performance, and flexibility to bring your vision to life.

Key Features

• 136.3 Gallons Total System Volume – 107-gallon display with 29.3-gallon sump

• Ultra-Clear Glass Construction – 15mm glass throughout with reinforced eurobracing

• Three Cabinet Finishes – Black, White, or new Classic Oak

• Marine-Spec Plywood Cabinet – Reinforced construction with adjustable leveling feet

• ReefControl Pro Controller – Smart monitoring with included pH and temperature probe

• 3 × ReefLED G2 115 Lights – High-performance coral-focused lighting

• 2 × ReefWave 45 Pumps – Powerful, customizable cross-flow circulation

• ReefRun G2 8000 Return Pump – Adjustable DC return flow

• ReefMat 1200 Roller Filter – Automatic mechanical filtration

• REEFER DC 600 Protein Skimmer – Efficient skimming with self-leveling technology

• Digital Automatic Top-Off – Water-level management with integrated temperature monitoring

• Dual 25mm Return Outlets – Flexible circulation configuration

• ReefGate Precision Valve – Quiet, accurate overflow adjustment

• Slide-Out Control Panel – Organized and accessible electronics

• Up to 5-Year Manufacturer Warranty – With qualifying registration

Advanced ReefControl Pro Technology

The REEF-FRAME MAX 500 includes Red Sea's ReefControl Pro, bringing aquarium monitoring and compatible equipment management together through the ReefBeat app.

The included system features:

• ReefControl Pro Controller

• ReefSense pH and temperature probe

• Digital ReefControl ATO module

• Integrated water-level and temperature sensor

• Support for additional compatible ReefSense probes and sensors

• Connections for compatible 12V DC devices

• ReefBeat app connectivity

This integrated ecosystem makes it easier to monitor aquarium conditions, manage connected equipment, and expand automation as your reef develops.

Premium Ultra-Clear Glass & Reinforced Construction

The REEF-FRAME MAX 500 features a beautiful ultra-clear glass display designed to showcase vibrant fish, corals, and elaborate aquascaping.

All four vertical panels and the bottom use 15mm (0.59") glass bonded with high-quality euro-silicone.

Reinforced eurobracing provides exceptional structural support while maintaining a sleek, modern appearance.

With nearly five feet of display length, the aquarium offers generous room for elaborate reef structures, open swimming areas, and expansive coral colonies.

Extra-Fortified Cabinet – Black, White & New Classic Oak

The REEF-FRAME MAX 500 includes a premium marine-spec plywood cabinet designed to support the full contour of the aquarium.

The reinforced cabinet features adjustable leveling feet for precise installation and stainless steel hinges for durable access to equipment.

Three available finishes allow the aquarium to complement different interior styles.

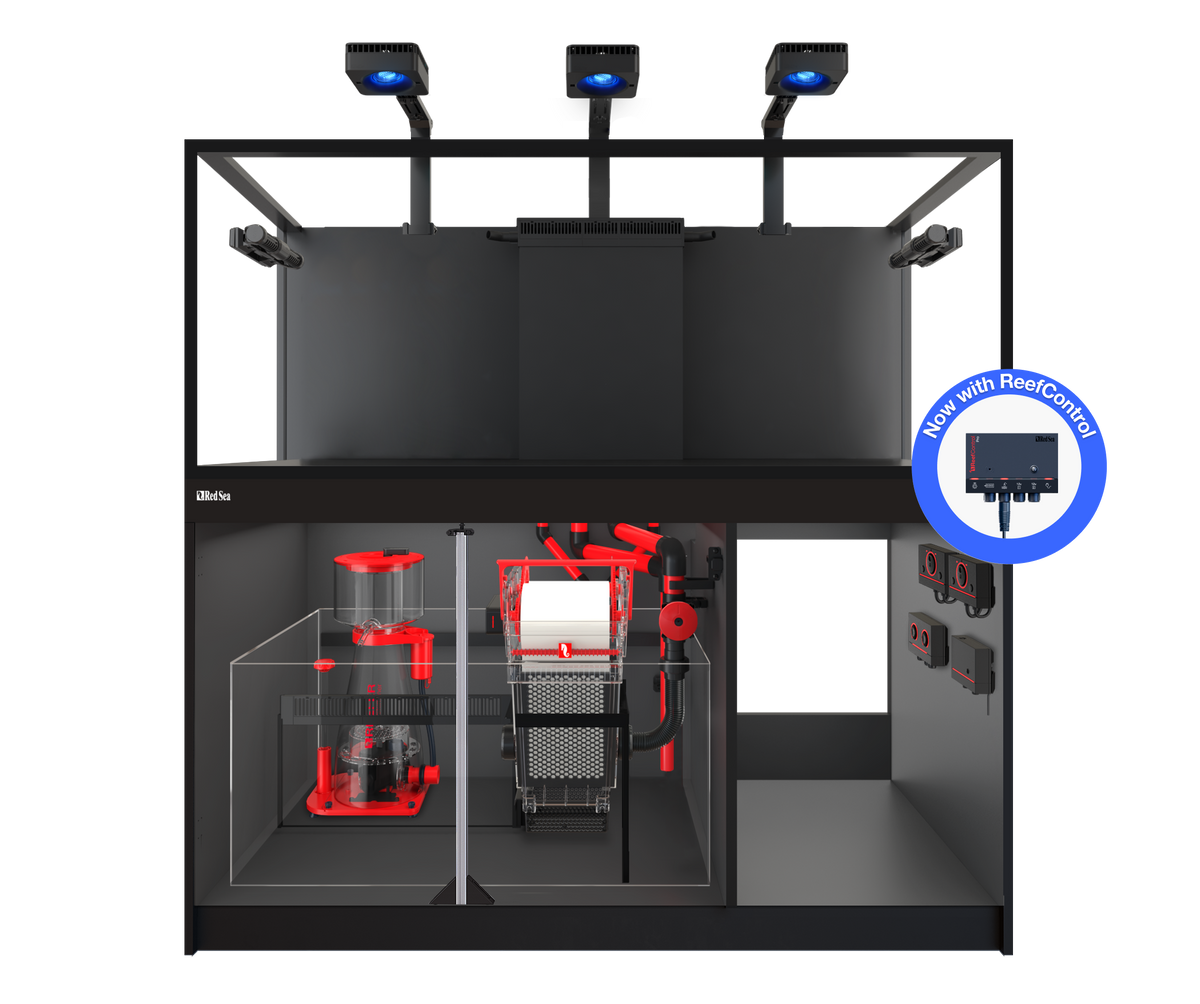

Black Cabinet

A sophisticated, contemporary finish that creates a dramatic contrast with the vibrant colors of the reef.

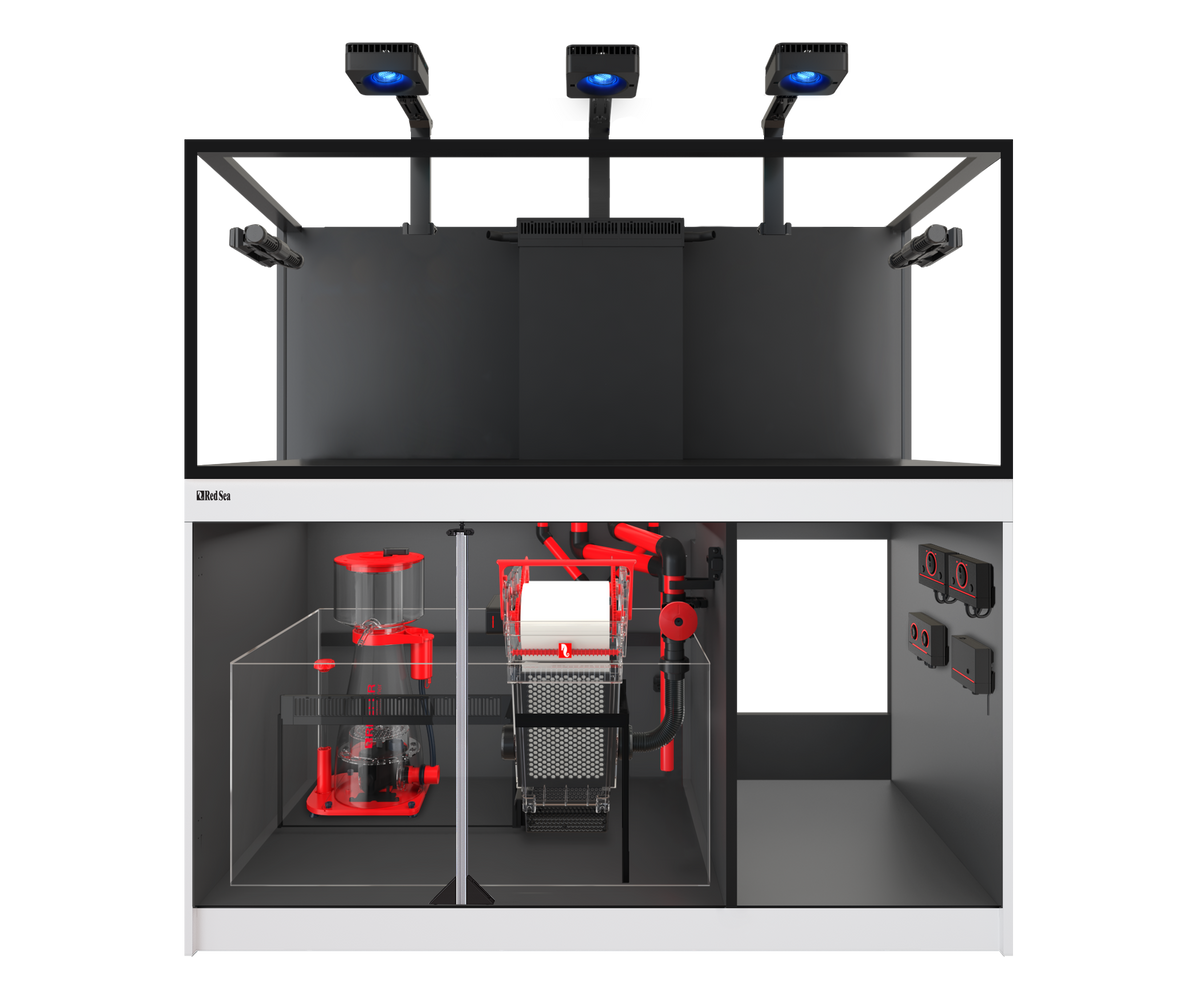

White Cabinet

A bright, clean finish that blends beautifully with coastal homes, modern living spaces, and light-colored interiors.

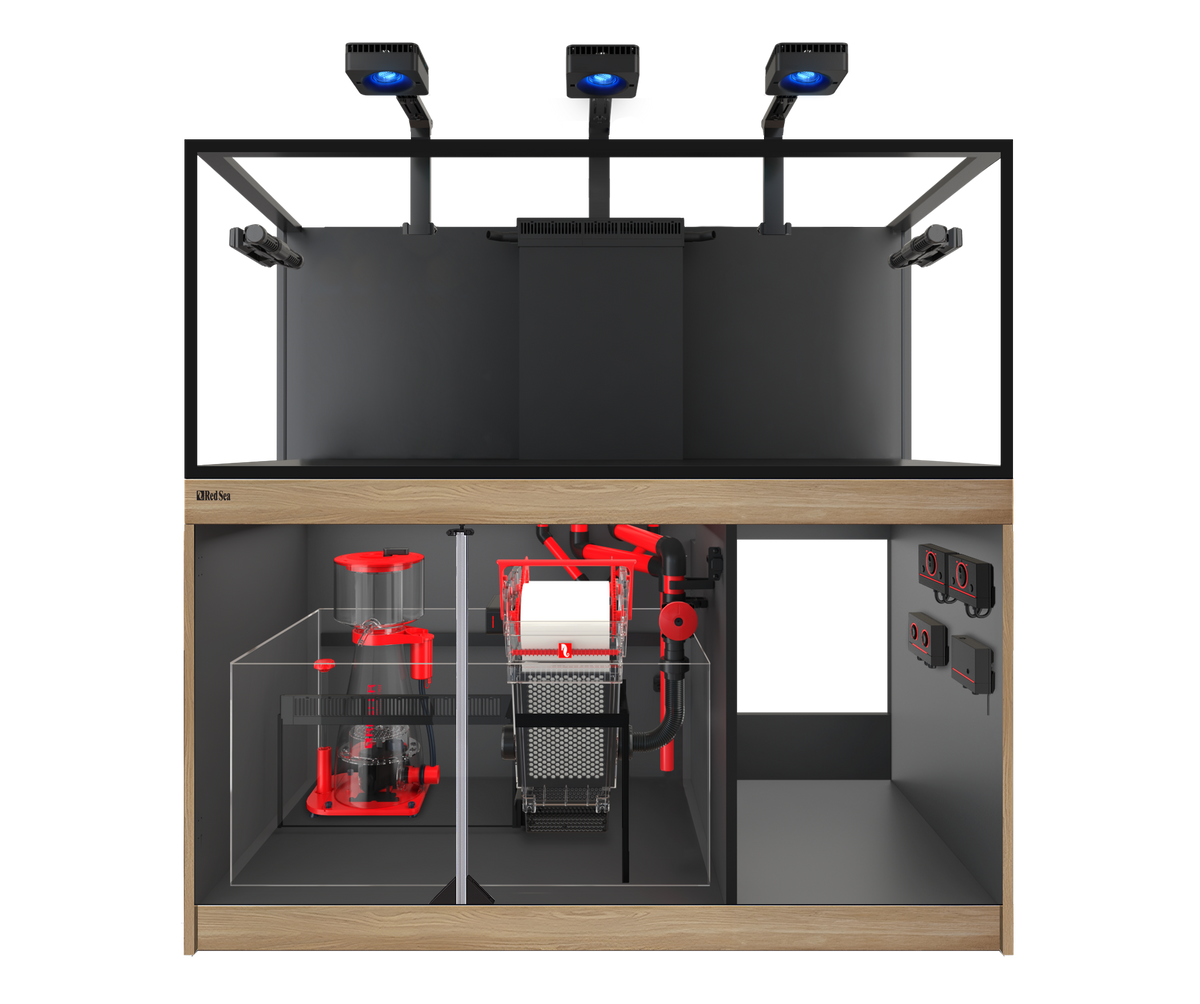

Classic Oak Cabinet – New

The new Classic Oak finish introduces the natural warmth and appearance of wood into the REEF-FRAME series.

This furniture-inspired finish is particularly attractive in living rooms, offices, and spaces with wood flooring or natural design elements.

Its warm appearance creates a more residential, integrated look while retaining the same reinforced marine-spec plywood construction as the Black and White options.

All three cabinet finishes provide identical structural performance and equipment compatibility.

Advanced ReefGate Plumbing

The REEF-FRAME MAX 500 incorporates Red Sea's hydrodynamically designed plumbing system.

Enlarged downflow pipes and the ReefGate precision valve help maintain smooth, quiet drainage with accurate flow adjustment.

Two curved 25mm return outlets distribute water into the display.

The plumbing supports single or dual return-pump configurations, while the central overflow incorporates removable surface-skimmer comb sections for easy maintenance.

Complete Reef-Ready Equipment Package

ReefLED G2 115 Lighting – 3 Included

Three Red Sea ReefLED G2 115 fixtures provide powerful coral-focused lighting across the spacious display.

These ReefBeat-compatible fixtures allow customizable intensity, spectrum settings, and lighting schedules.

Three compatible mounting arms are included.

ReefWave 45 Circulation Pumps – 2 Included

Two ReefWave 45 pumps provide broad, powerful cross-flow circulation throughout the aquarium.

Each pump delivers up to approximately 3,960 GPH, with customizable flow patterns that help distribute water around rockwork and corals while reducing stagnant areas.

The adjustable circulation is especially valuable in larger reef displays where consistent water movement is important.

ReefRun G2 8000 Return Pump

The DC-powered ReefRun G2 8000 provides adjustable return flow from approximately 1,080 to 2,200 GPH.

Its variable-speed design allows reefkeepers to fine-tune water circulation between the sump and display.

ReefMat 1200 Automatic Roller Filter

The included ReefMat 1200 automatically advances its filter fleece to remove suspended waste and debris from aquarium water.

This reduces routine mechanical filtration maintenance while helping maintain consistently clear water.

Its large-capacity design is particularly well suited for a substantial reef aquarium.

REEFER DC 600 Protein Skimmer

The included REEFER DC 600 removes dissolved organic waste before it breaks down in aquarium water.

Featuring approximately 396 GPH water flow and 198 GPH air flow, the skimmer provides effective organic waste removal and aeration.

Its self-leveling technology helps maintain stable skimming performance and reduce the risk of excessive skimming.

Integrated Digital Automatic Top-Off

The included ReefControl ATO module automatically replenishes evaporated freshwater.

Its digital water-level and temperature sensor helps maintain consistent salinity while providing additional aquarium monitoring through the ReefBeat ecosystem.

Versatile REEF-SPEC Sump

The included 29.3-gallon REEF-SPEC sump provides a spacious foundation for the aquarium's filtration equipment.

Features include:

• ReefMat-ready mechanical filtration chamber

• Adjustable protein skimmer chamber

• Integrated bubble trap

• Optional refugium divider

• Flexible space for additional compatible equipment

The MAX configuration includes the ReefMat 1200 and REEFER DC 600 selected for this aquarium system.

Convenient Cabinet & Equipment Management

The reinforced marine-spec plywood cabinet provides convenient access to the sump and equipment.

An included Slide-Out Control Panel provides an organized location for compatible electronics and convenient access for setup and maintenance.

What's Included

• REEF-FRAME 500 ultra-clear glass aquarium

• Marine-spec plywood cabinet in selected finish

• REEF-SPEC sump and plumbing with ReefGate valve

• 3 × ReefLED G2 115 lighting fixtures

• 3 × ReefLED mounting arms

• 2 × ReefWave 45 circulation pumps

• 1 × ReefRun G2 8000 return pump

• 1 × ReefMat 1200 automatic roller filter

• 1 × REEFER DC 600 protein skimmer

• ReefControl Pro Controller

• ReefSense pH and temperature probe

• Digital ReefControl ATO module

• Slide-Out Control Panel

Aquarium Specifications

Manufacturer Warranty

Red Sea provides a standard 3-year manufacturer warranty on REEF-FRAME aquariums.

Register your new aquarium within 90 days of purchase to receive an additional two years of coverage at no extra cost, for up to five years total.

Warranty coverage is subject to Red Sea's terms and conditions.
