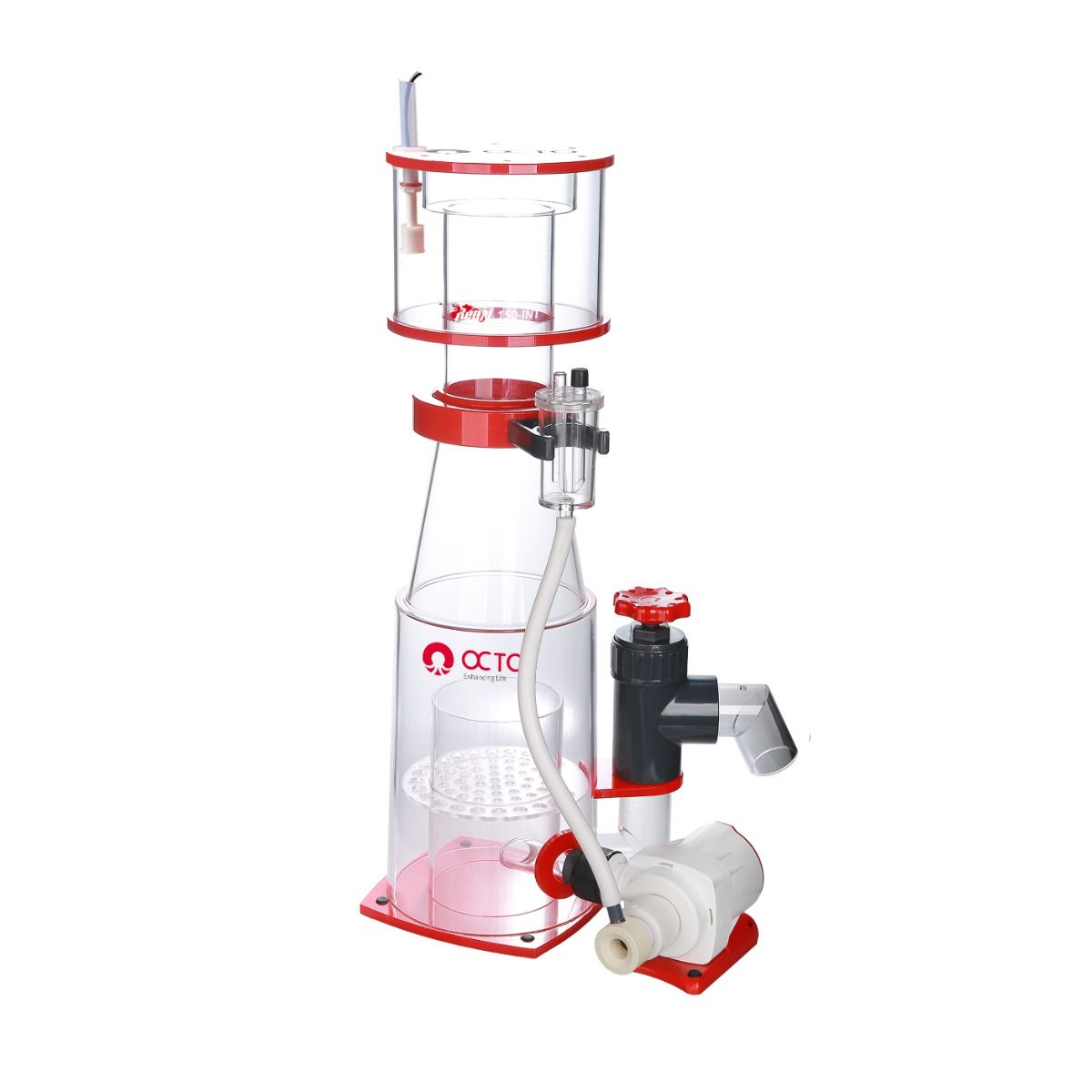

In-Sump Protein Skimmer Rated for Aquariums for 100 to 211 Gallons
Footprint: 11.4" x 7.5" | Reaction Chamber: 6" | Height: 22.6"
Powered by: Reef Octopus VarioS-2S Controllable Pinwheel Pump
Controller Features: Multiple pause times, float switch safety, and 0-10v input for 3rd party controller
Latest in Controllable Skimmer Technology
The new and innovative Reef Octopus Regal 150-INT in-sump protein skimmer supplies powerful filtration for up to 211 gallons of aquariums, where sump space is unlimited. The Reef Octopus Regal 150-INT is constructed of high-quality cast acrylic that is completely disassembled for cleaning. Its hybrid conical body naturally stabilizes and concentrates the organic-rich foam as it rises.
Bioload Handling
(Excluding sump)
| Light | Medium | Heavy |
| 211 USG | 160 USG | 100 USG |
Skimmer Features
-
Safe and Efficient 24V Power
-
Solid Cast Acrylic Construction
-
High-Performance VarioSSkimmer Pump
-
5 Controllable Energy Saving Power Settings
-
Detachable Controller with Waterproof Union
-
Safety Float Switch
-
0-10v Input for 3rd Party Controller
-
Integrated Memory
-
Two pause/feed modes will shut off the pump for 15 or 60-minute intervals
REFINED CONTROL

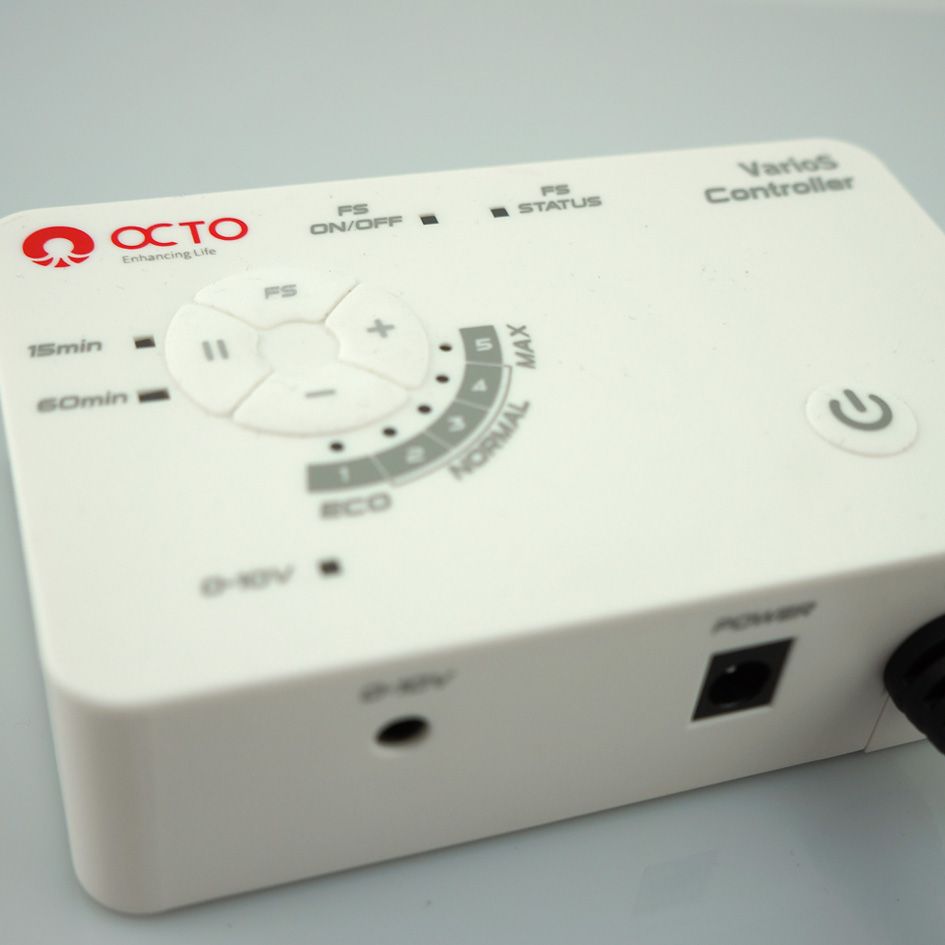

In addition to allowing the pump to run at five different speeds, the new VarioS Controller takes the pump to a new level, featuring:

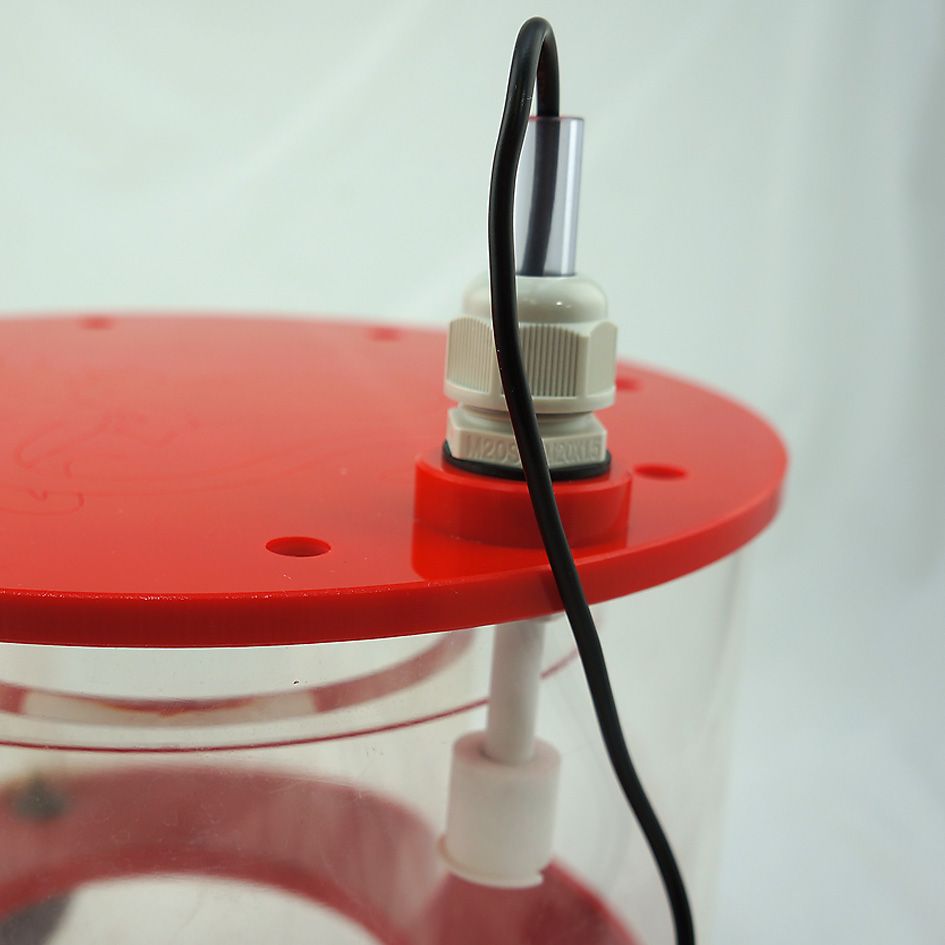

- A float switch connection allows you to connect a float switch (included in the box) to the controller. This added security feature will enable you to shut off the skimmer pump when your waste collector is full or shut off your water pump when your sump water has reached a high or low level. You don’t need another module or controller to add a float switch to your system.
- Two different pause/feed modes shut off the pump for 15 or 60-minute intervals. These are handy when feeding the tank or conducting regular maintenance, such as a water change.

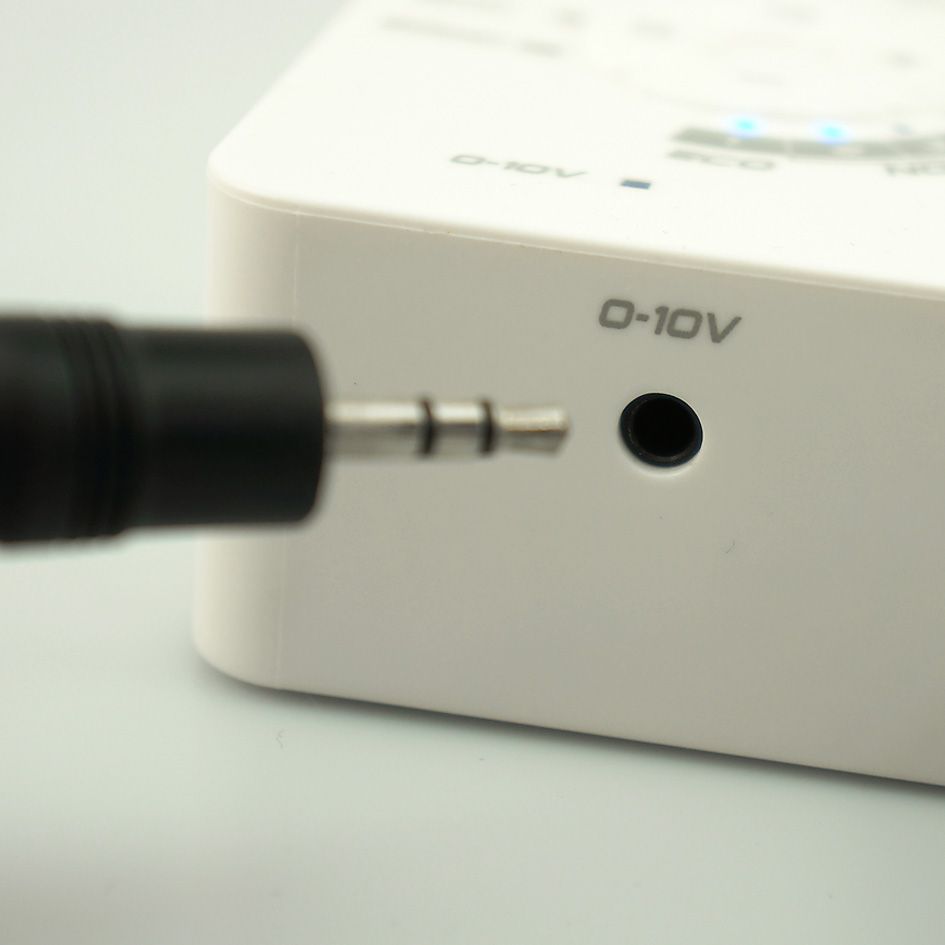

- The best feature of the VarioS controller is… a 0-10v input, allowing a 3rd party controller, such as Neptune System’s APEX or Reef Angel, to take over the pump and tell it what to do. In this mode, the new VarioS controller becomes an interface between the system controller and the pump, allowing you to create intricate programs using your system controller's native language. This is unprecedented controllability on a skimmer or water pump. You can use your system controller as your DC pump controller!
The VarioS pump features an actual slow startup where the pump slowly ramps up from zero RPM to the full preset speed over approximately 10 seconds.
The pump and controller are connected via a waterproof 3-conductor union. The detachable controller will allow for a simple waterproof union. The volute can rotate to change the pump's output orientation in 90-degree intervals, meaning users can output water vertically (up or down) and horizontally.
Regal 150INT Technical Specs
-
Body: 6in
-
Footprint: 11.4 x 7.5in
-
Neck Size: 3in
-
Total Height: 22.6in
-
Output Size: 40mm/1.25in
Pump Information
-
Reef Octopus Variable Speed VarioS 2-S Pinwheel Pump
-
Power Consumption: 15-25watts
Dimensions: 4.75in(W) x 5.7in(L) x 4in(H) -
Voltage: 24VDC
-
Air Draw: 900 lph / 31.5 SCFH*
-
Water Draw: 238 gph
*Air and water results will vary depending on the aquarium setup
WARRANTY
CoralVue, Inc. and Reef Octopus hereby guarantee this product to be free from defects in material and workmanship for a period of:
- Five (5) year warranty on pump body/housing
- Five (5) year warranty on Reef Octopus branded controller
- One (1) year warranty on Power Supply, Impeller (and components), Rotor, Rear Bushing, and Gaskets
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
