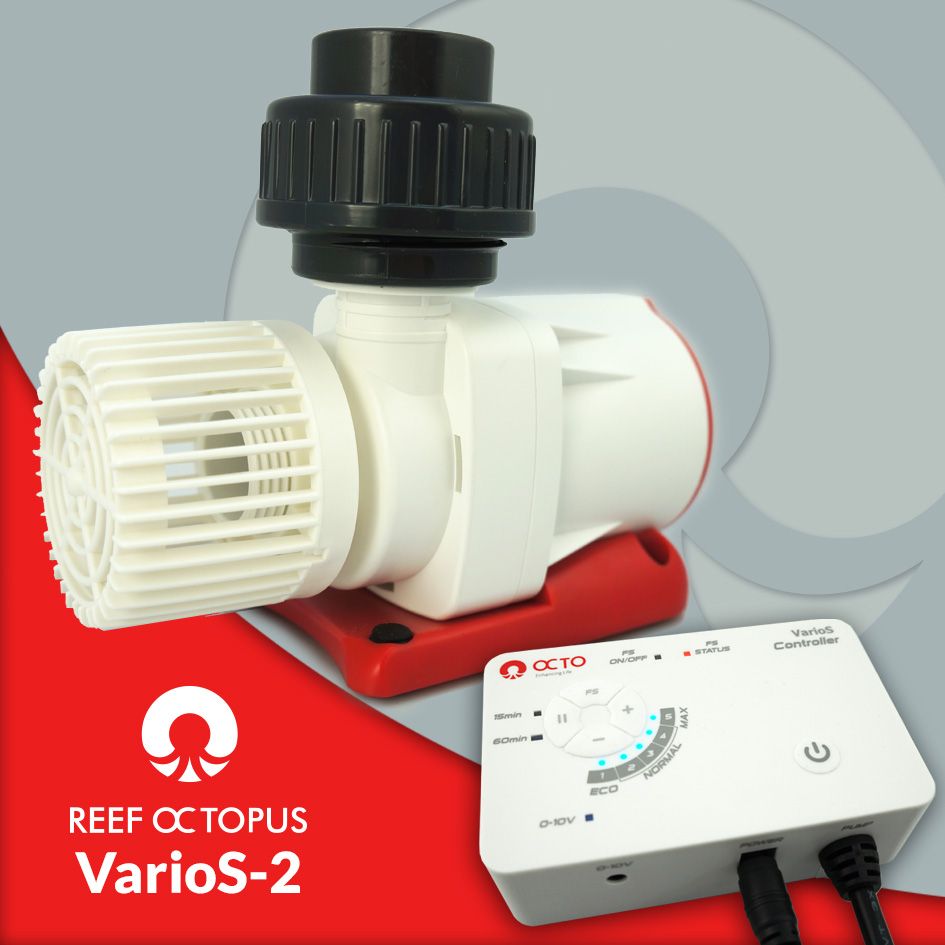

VarioS-2 Circulation Pump

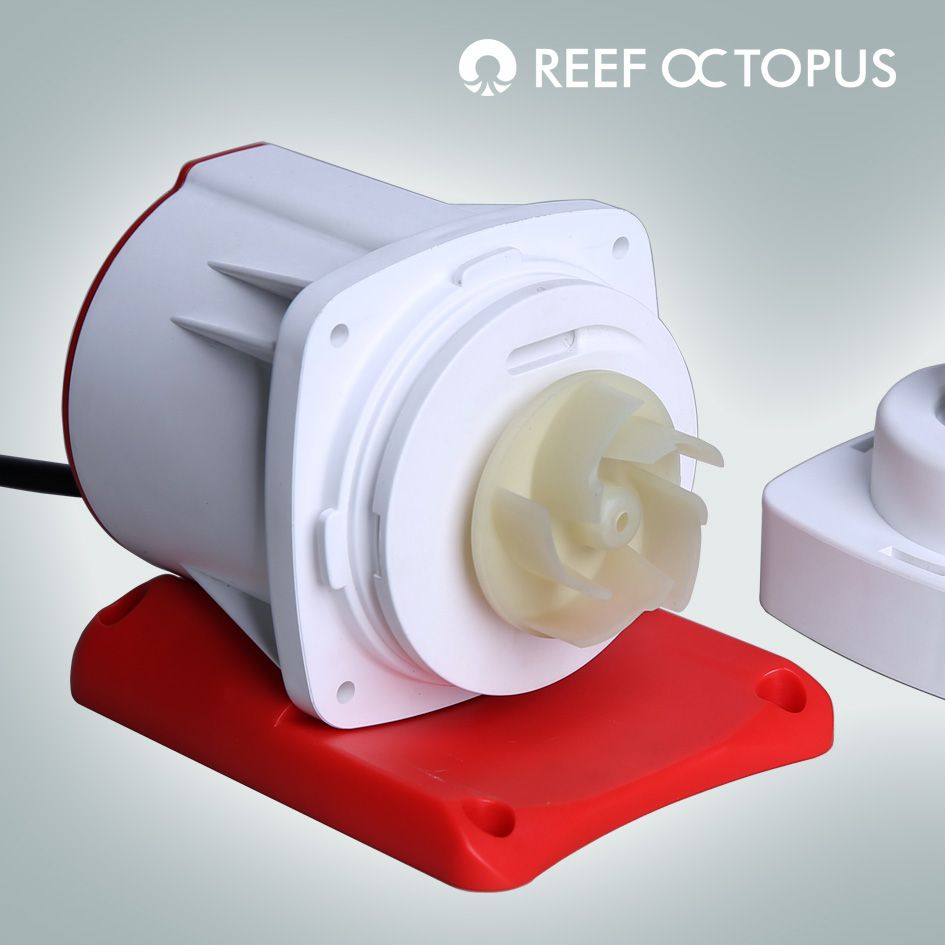

The Reef Octopus VarioS Circulation Pump features a detachable controller with mount, high quality ceramic shaft with propeller bearing to reduce wear and tear and the latest variable speed flow technology for refined control, enhanced performance, energy-efficiency and safer operations.
Unlike the vast majority of circulationpumps which uses alternating current (AC), the VarioS pump boasts several key advantages over traditional AC pumps like greater energy efficiency and safer low voltage operationand produce less heat per volume of flow.
>>> Now the aquarist can have full control of the water flow through their sump, reactors, filters or closed loop systems!!!
REFINED CONTROL

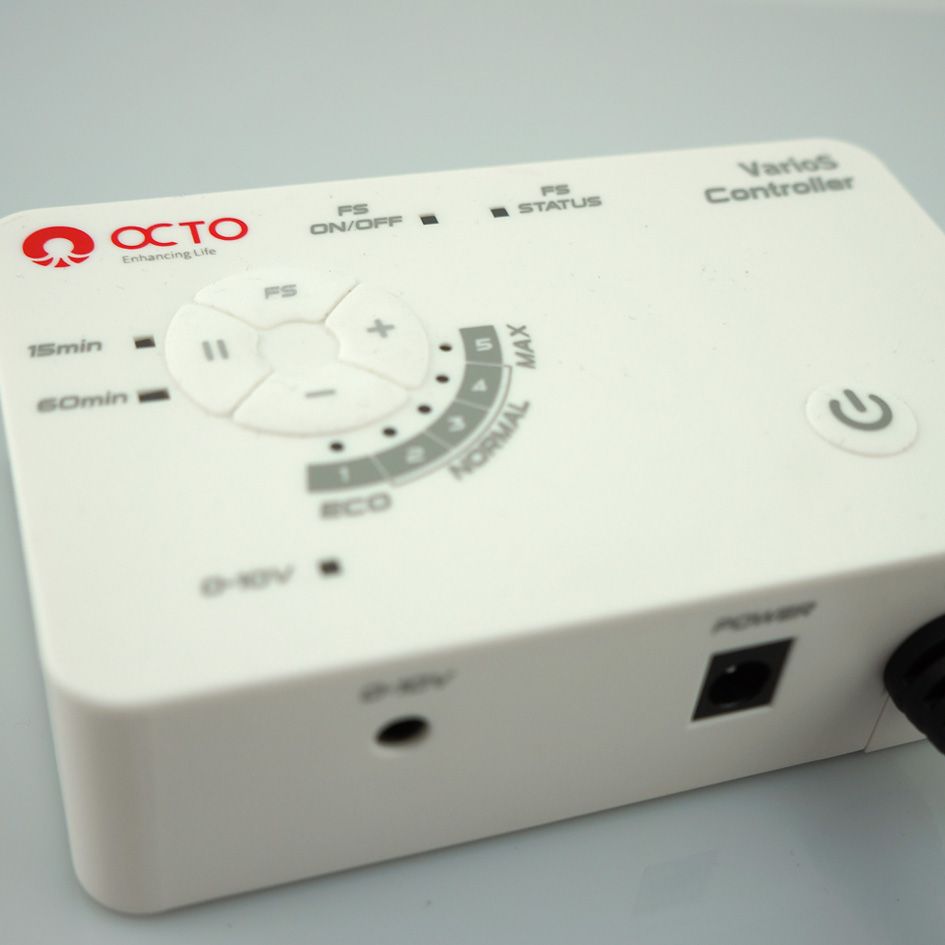

In addition to allowing the pump to run at 5 different speeds, which is pretty normal for a DC pump, the new VarioS Controller takes the pump to a new level featuring:

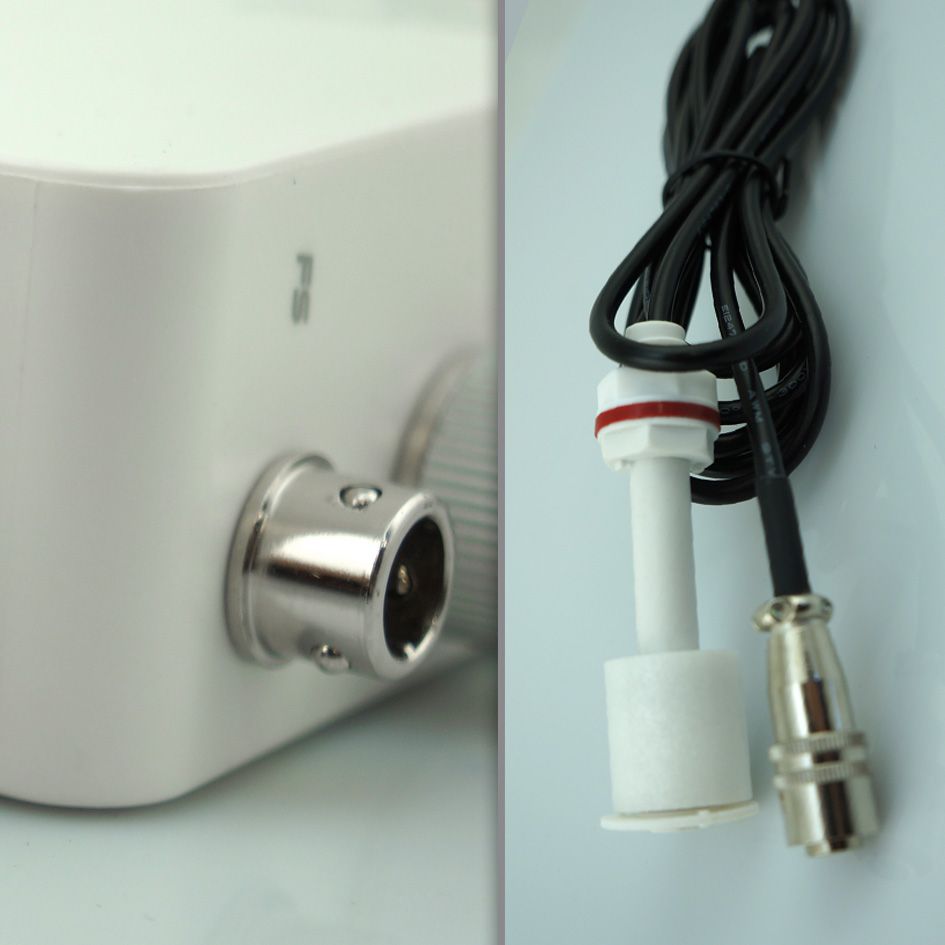

- A float switch connection, which allows you to connect a float switch (included in the box) to the controller. This is an added security feature that allows you to shut off your water pump when your sump water has reached a high or low level. In all, you don’t need another module or controller to add a float switch to your system.
- Two different pause/feed modes that will shut off the pump for either 15 or 60 minute intervals. These come handy when you are feeding the tank or conducting regular maintenance such as a water change.

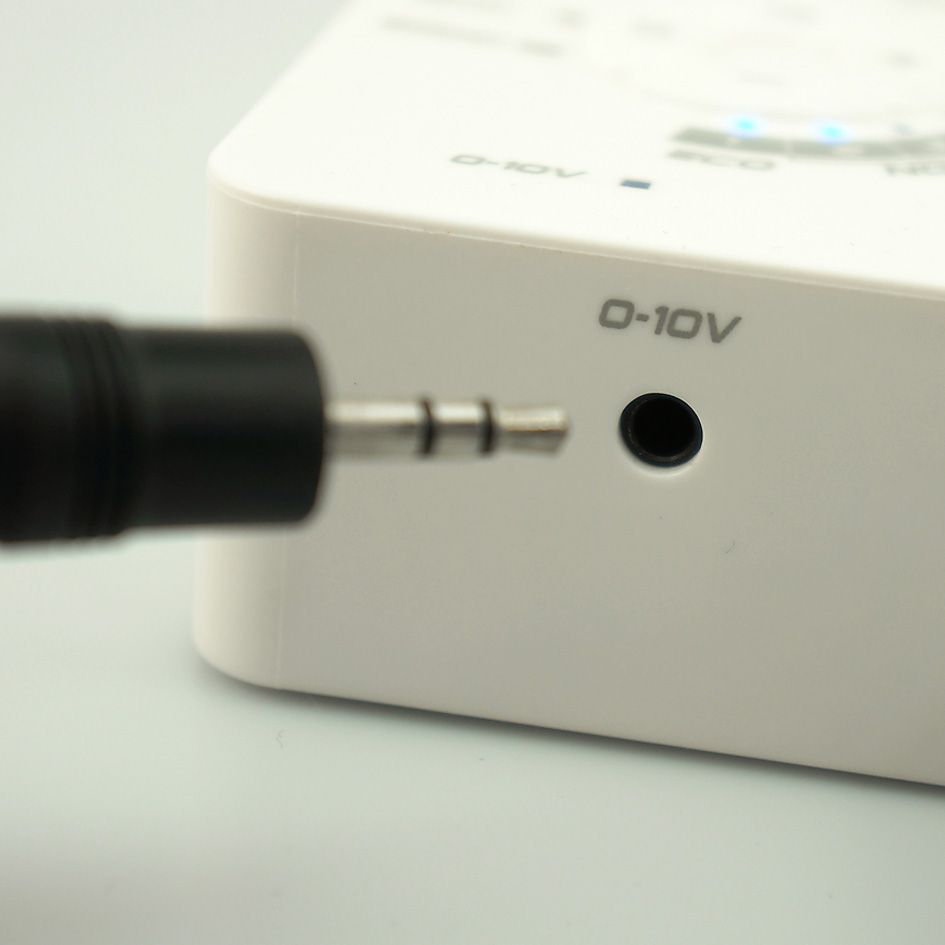

- And the best feature of the VarioS controller is… a 0-10v input which will allow a 3rd party controller such as CoralVue HYDROS X4/X10, Neptune System’s APEX or Reef Angel to take over the pump and tell it what to do. In this mode, the new VarioS controller becomes an interface between the system controller and the pump allowing you to create intricate programs using your system controller native language. This is unprecedented controllability on a skimmer or water pump. In essence, you can use your system controller as your DC pump controller!

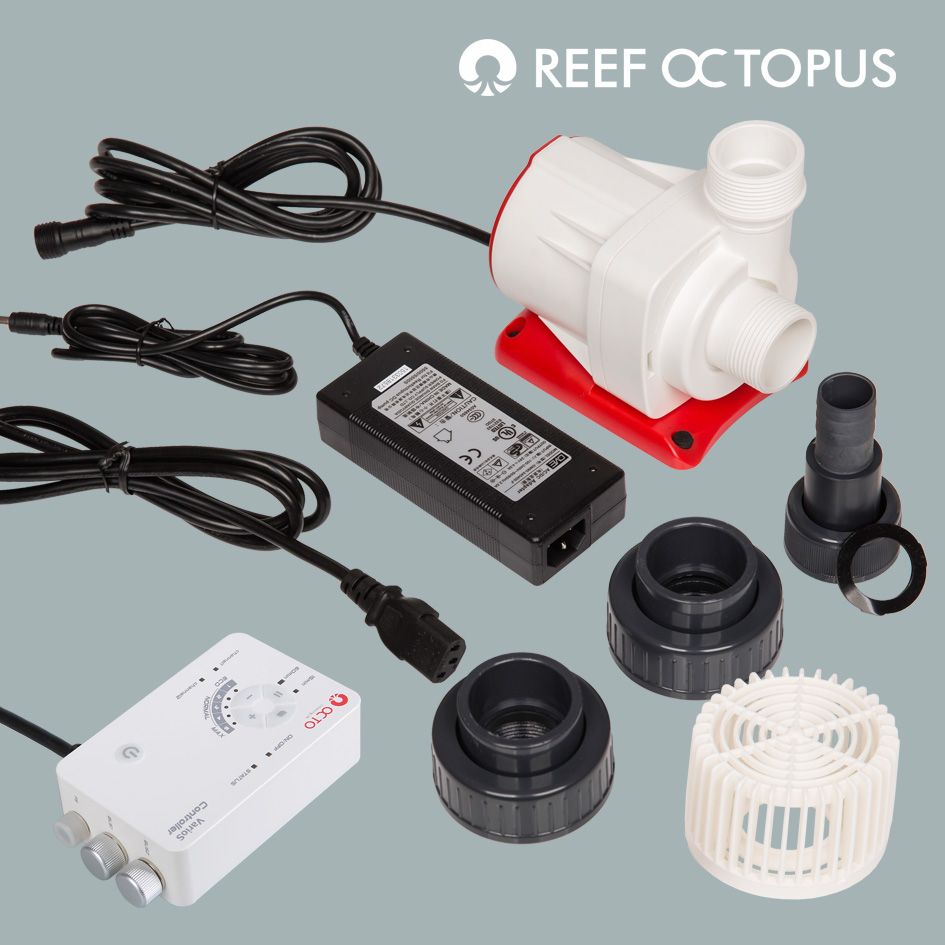

Includes: VarioS pump, controller, float switch, power supply, output and input union for plumbing direct PVC, versatile stepped barb output fitting for flex tubing and protective intake screen.
The VarioS pump has a true slow startup where the pump slowly ramps up from zero RPM to the full preset speed over a period of approximately 10 seconds.
The pump and controller are connected via a waterproof 3-conductor union. The detachable controller will allow for a simple waterproof union. The volute can rotate to change the pump's output orientation in 90 degree intervals, meaning users can output water vertically (up or down) as well as horizontally.
VarioS 2 Water Pump Specs
Output Thread Size: 1in slip PVC
Inlet Union Size: 1in slip PVC
Outlet Barb Size: 1/2-3/4in Stepped
Dimensions: 3.1in(W) x 5.1in(L) x 4.25in(H)
Voltage: DC 24V
Power Consumption: 25 watts at max power
Max Flow: 792gph*
Max Head Height: 13ft*
*results will vary depending on aquarium setup
Note: THIS IS NOT A PRESSURE RATED PUMP. This pump is not ideal for second floor applications or to feed Beckett or downdraft skimmers where consistent pressure is necessary.

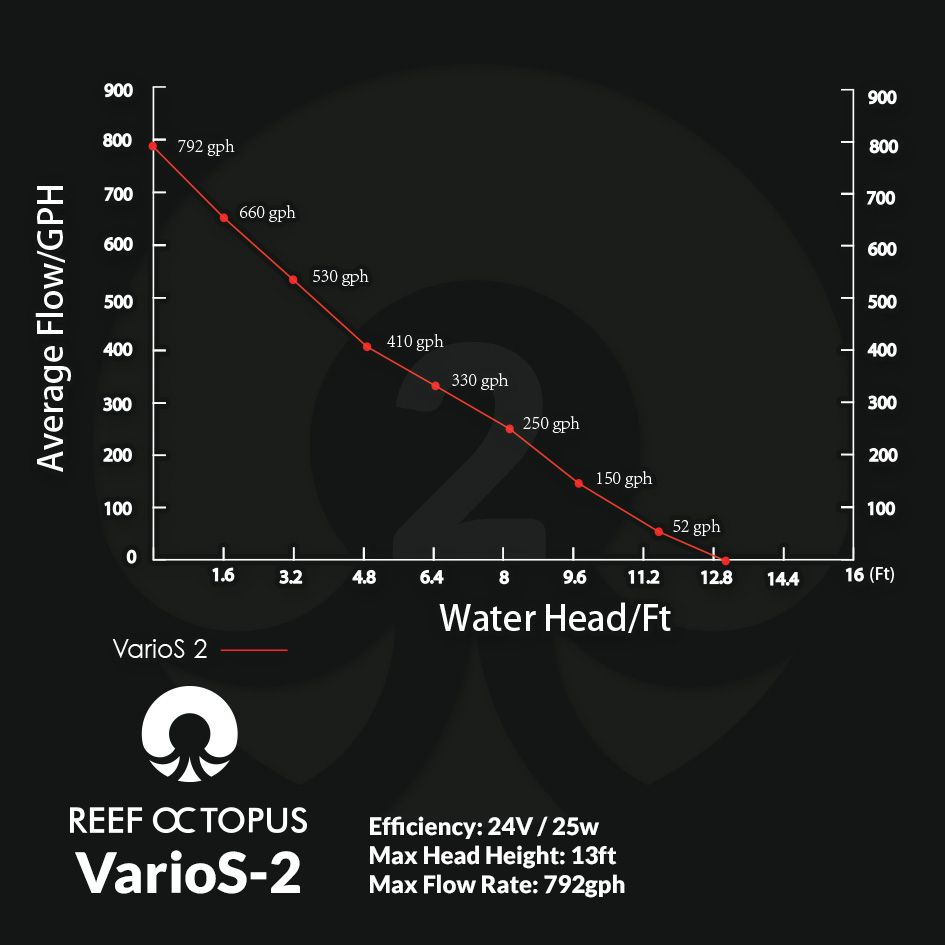

| Power Level | Max Head Height | Max Flow Rate | Power | ||
| Meter | Feet | LPH | GPH | W | |
| 1 | 1.9 | 6.2 | 1450 | 383 | 10 |
| 2 | 2.3 | 7.5 | 2000 | 528 | 14 |
| 3 | 2.8 | 9.2 | 2200 | 580 | 16 |
| 4 | 3.5 | 11.5 | 2600 | 686 | 20 |
| 5 | 4 | 13.1 | 3000 | 792 | 25 |
| Note: The chart does not reflect head pressure caused by restrictive plumbing. | |||||
WARRANTY
CoralVue, Inc. and Reef Octopus hereby guarantee this product to be free from defects in material and workmanship for a period of:
- Five (5) year warranty on pump body/housing
- Five (5) year warranty on Reef Octopus branded controller
- One (1) year warranty on Power Supply, Impeller (and components), Rotor, Rear Bushing, and Gaskets
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
