Marine X
The Waterbox Marine X series is a professionally engineered, reef-ready aquarium system designed to meet the needs of both dedicated hobbyists and advanced aquarists. Built with ultra-clear, low-iron glass and a sleek rimless design, the Marine X delivers stunning visual clarity and modern aesthetics to any living or work space.

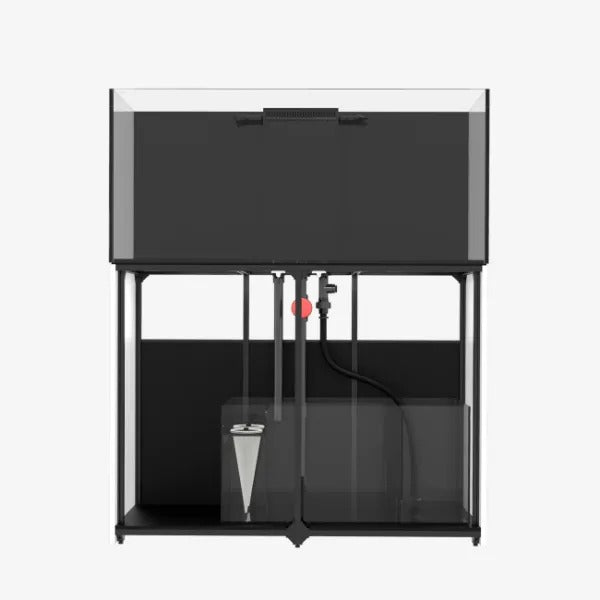

Each system includes a thoughtfully designed glass sump filtration system, complete plumbing kit with precision fittings, and a durable, marine-grade cabinet stand. The integrated overflow box ensures quiet, efficient water movement while maximizing display space. With user-friendly assembly and premium materials throughout, the Waterbox Marine X offers an ideal foundation for building a thriving marine ecosystem.
Key Features:
-
Ultra-clear, low-iron glass for crystal-clear viewing
-
Rimless design with polished edges for a clean, modern look
-
Central overflow box with dual returns for optimal flow and quiet operation
-
Pre-plumbed system for quick and easy setup
-
High-capacity glass sump with filter socks and RO reservoir
-
Aluminum framed cabinet stand available in white, black, and aspen
The Waterbox Marine X – where performance, elegance, and ease of use come together to support your saltwater aquarium journey.
PEACE OF MIND
3 Year Waterbox Warranty warrants your product against defects in materials and workmanship for a period of 3 years, valid from the original date of purchase.
Specifications
• Dimensions (LxWxH): 1200 x 500 x 550mm (47.2" x 19.7" x 21.7")
• Height with Cabinet: 1450mm / 57.1"
• Display Volume: 301L / 79.6gal
• Total Volume: 399L / 105.3gal
• Glass Thickness: 12mm
• Includes: Aquarium, Cabinet, Sump, Plumbing Kit, Filter Socks, Sock Silencers
Technical Specifications
| Product Model | MARINE X 60.2 | MARINE X 90.3 | MARINE X 110.4 | |
|---|---|---|---|---|
| System | Height with Cabinet | 1,400mm/55.6" | 1,450mm/57.1" | 1,450mm/57.1" |
| Total Volume with RO | 211 L/55.6 gals | 342 L/90.2 gals | 418 L/110.5 gals | |
| Total System Weight | 88 kg/194 lbs | 126 kg/278 lbs | 174 kg/384 lbs | |
| Display Tank |
Tank Dimensions | 600 x 500 x 500mm | 900 x 500 x 550mm | 1,200 x 500 x 550mm |
| 23.6" × 19.7" × 19.7" | 35.4" × 19.7" × 21.7" | 47.2" × 19.7" × 21.7" | ||
| Glass Thickness | 10mm (2/5") | 12mm (1/2") | 12mm (1/2") | |
| Aquarium Volume | 136 L/36 gals | 224 L/59.3 gals | 301 L/79.6 gals | |
| Aquarium Weight | 47 kg/104 lbs | 54 kg/119 lbs | 95 kg/209 lbs | |
| Glass Material | Ultra-clear Low Iron glass (front and sides) | |||
| Transmittance | 91% | |||
| In-cabinet Sump |
Dimensions | 510 x 410 x 380mm | 800 x 410 x 380mm | |
| 20.1" × 16.1" × 15" | 31.5" × 16.1 × 15" | |||
| Sump Volume | 74 L/19.6 gals | 117 L/31 gals | ||
| Sump Weight | 13 kg/29 lbs | 38 kg/84 lbs | 38 kg/84 lbs | |
| Glass Thickness | 6mm (1/4") | 6mm (1/4") | ||
| Skimmer Chamber (Int. Dimensions) |
308 x 258mm | 388 x 343mm | ||
| 12.1" × 10.2" | 15.3" × 13.5" | |||
| Pump Chamber (Int. Dimensions) |
140 x 210mm | 210 x 150mm | ||
| 5.5" × 8.3" | 8.3" × 5.9" | |||
| RO Reservoir (Int. Dimensions) |
140 x 183 x 359mm | 210 x 243 x 359mm | ||
| 5.5" × 7.2" × 14.1" | 8.3" × 9.6" × 14.1" | |||
| RO Volume | 9.2 L/2.4 gals | 18.3 L/4.8 gals | ||
| Plumbing | Main Drain | DN20 (ID: 20mm OD: 25mm) | DN25 (ID: 25mm OD: 32mm) | |
| Emergency Overflow | DN20 (ID: 20mm OD: 25mm) | DN25 (ID: 25mm OD: 32mm) | ||
| Pump Return | DN20 (ID: 20mm OD: 25mm) | DN20 (ID: 20mm OD: 25mm) | ||
| Return Hose | lD: 18mm OD: 24mm | |||
| Nozzle(s) (Thread Size) | 2 x M20 (20mm) | |||
| Filtration | 225 Micron Fileter Socks | 1 x 105mm/4" FELT | 2 x 105mm/4" FELT | |
| Filter Sock Silencers | 1 x 105mm/4" | 2 x 105mm/4" | ||
| Interchangable with Roller Filter | YES | YES | ||
| Cabinet | Cabinet Model | ALU 2420 | ALU 3620 | ALU 4820 |
| Cabinet Dimensions | 600 x 500 x 900mm | 900 x 500 x 900mm | 1,200 x 500 x 900mm | |
| 23.6" × 19.7" × 35.4" | 35.4" × 19.7" × 35.4" | 47.2" × 19.7" × 35.4" | ||
| Sump Compartment (Int. Dimensions) |
524 x 468 x 813mm | 824 x 448 x 813mm | 1,124 x 440 x 813mm | |
| 20.6" × 18.4" × 32" | 32.4" × 17.6" × 32" | 44.3" × 16.5" × 32" | ||
| Cabinet Framework | Anti-corrosion Aluminum Alloy | |||
| Door & Side Panels | 18mm PVC Laminated Wood Oriented Strand Board | |||
| Bottom Panels | 10mm PVC Board | |||
| Back Panels | 6mm PVC Board | |||
| Cabinet Weight | 28 kg/62 lbs | 34 kg/75 lbs | 41 kg/90 lbs | |
| Cabinet Color | WHT-White, BLK-Black, ASP-Aspen | |||
